  11. Plate Caster, Rigid, Iron, 7 1/2"H
Hamilton Plate Caster, Rigid, Iron, 7 1/2"H R-FMK-63HMB - main

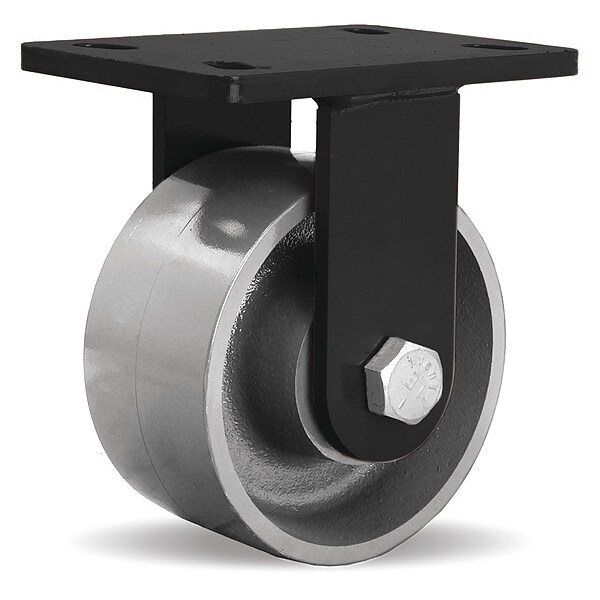

Plate Caster, Rigid, Iron, 7 1/2"H

  • Mfr # R-FMK-63HMB

  • Zoro # G9075234

product price: $337.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-FMK-63HMB
Zoro #
G9075234
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
For Axle Dia.
3/4 in
Swivel Radius
None- Rigid Caster
Overall Wheel Width
3 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Load Rating
1000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Wheel Type
Flat-Free
With Toe Plate
No
Frame Color
Black
NSF Listed
No
Includes Thread Guards
No
Tread
Flat
Wheel/Tread Hardness Rating
Extra Hard
Tire Style
Tubeless
For Surface Type
Concrete
Swivel Lock Type
No Lock Included
Standards
ANSI ICWM
Swivel Lead
1 3/4 in
Wheel Core Material
Iron
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating Range
1000 to 2999 lb
Swivel Bearing Seal Type
Sealed
Frame Construction
Forged
Frame Finish
Enamel
Operating Temperature Range
-50 Degrees to 200 Degrees F
Series
MagmaMax
Includes Spanner Bushing
Yes
Leveling Caster
No
Swivel Raceway Type
Roller
Wheel Core Type
Solid
Features
Durable, High Heat, Quiet Operation, Reliable
ESD Conductive
Yes
Wheel Bearing Material
Stainless Steel
Includes Mounting Fasteners
No
Load Capacity - Maximum
1,000 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
