  11. Plate Caster, Swivel, Forged Steel, 10 in, 4000 lb
Shop All Plate Casters
Hamilton

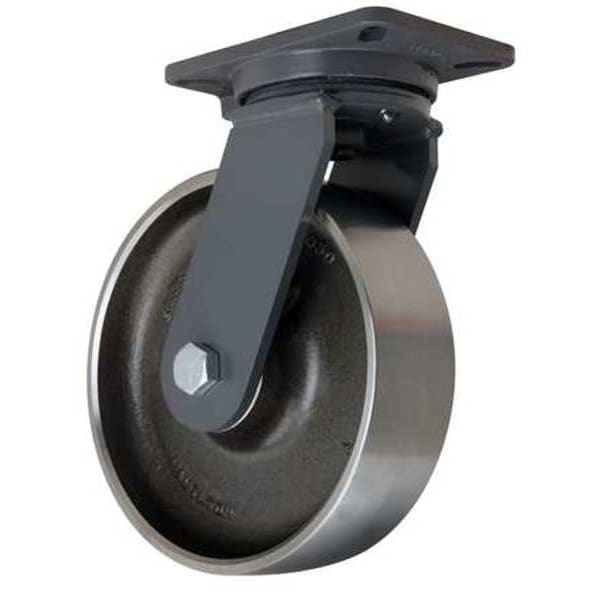

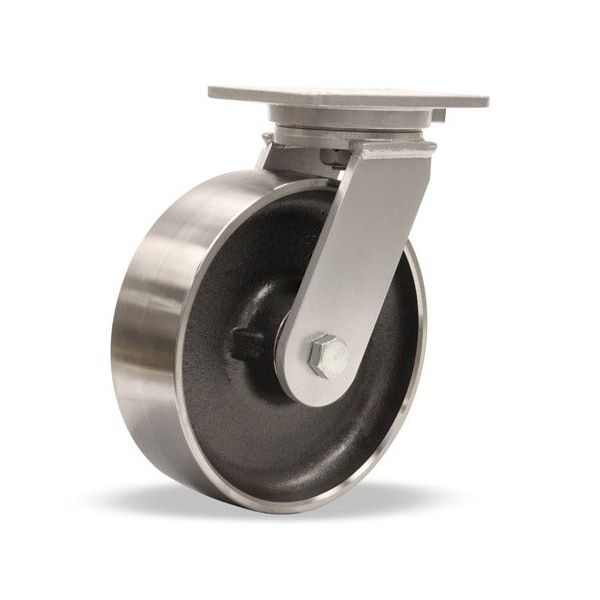

Plate Caster, Swivel, Forged Steel, 10 in, 4000 lb

original price: $430.86
7% off
new price: $397.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Forged Steel
See all product information

Product Information

Dimensions

Overall Height 12-1/2"
Wheel Dia. 10 in
Wheel Width 3 in
Stem Dia. No Stem
Caster Plate Size 5-1/4" x 7-1/4"
Plate Size 5-1/4" x 7-1/4"
Mounting Bolt Dia. 1/2 in
Mounting Plate Size 5 1/4 in x 7 1/4 in
Mounting Height 12 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Heavy-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Forged Steel
Load Rating 4000 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Core Material Forged Steel
Plate Caster Bolt Hole Pattern A
Application Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Wheel Bearings Ball
Plate Thickness 1/2"
Caster Product Group Swivel Caster
Extended Lead No
Replacement Wheel 4DU76
Caster Min. Temp. -40 Degrees F
Wheel Color Silver
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Caster Temp. Range -40 Degrees to 200 Degrees F
Core Color Silver
Item Standard Plate Caster
Caster Plate Thickness 1/2"
Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Caster Raceway Single Ball
Frame Material Forged Steel
Caster Swivel Lock Type No Lock Included
Non-Marking Yes
Caster Plate Hole Pattern A
Caster Temp. Range Available Yes
Caster Max. Temp. 200 Degrees F
Thread Guards No
Includes Spanner Bushing
Frame Finish Enamel
Caster Frame Material Steel
Durometer 179 BHN
Standards ICWM
Caster Brake Type No Brake Included
Load Rating Range 3000 to 5999 lb
Swivel Construction Kingpin
Includes Thread Guards No
Swivel Raceway Type Single Ball
Tread Shape Standard
Number of Mounting Holes 4
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern A
Wheel Bearing Type Precision Ball
Wheel/Tread Hardness Rating Extra Hard
Wheel Core Material Forged Steel
Wheel/Tread Material Steel
Wheel/Tread Color Silver

Description

Swivel, Standard Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Forged Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
