Shop HAMILTON

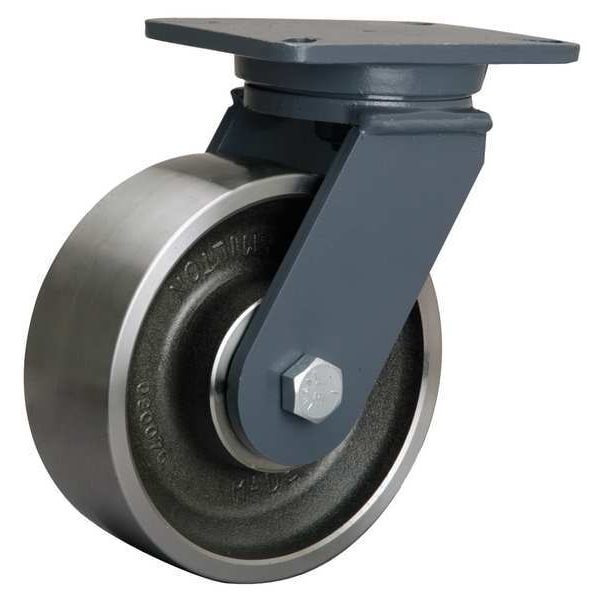

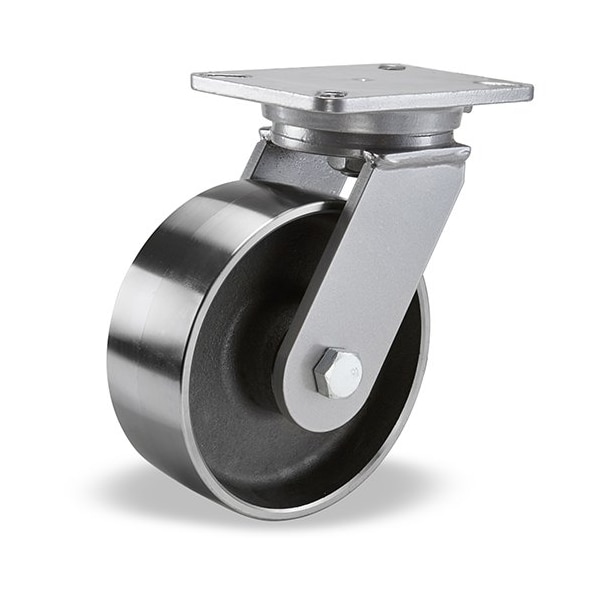

Plate Caster, Swivel, Forged Steel, 8 in., 4000 lb, A

  • Mfr # S-CH-83FSB

  • Zoro # G0468063

product price:
$
317.99
/ea
Free Shipping & Returns

Key Features

Core Color
Silver
Overall Height
10-1/2"
Load Rating
4000 lb
Wheel Width
3 in
Wheel Color
Silver
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-83FSB
Zoro #
G0468063
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
10-1/2"
Wheel Dia.
8 in
Wheel Width
3 in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Length
6.125 in
Mounting Plate Thickness
3/8 in
Mounting Plate Length
7 1/4 in
Inside Slot Spacing - Width
3.375 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in

Details

Core Color
Silver
Load Rating
4000 lb
Item
Plate Caster
Wheel Color
Silver
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Swivel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Frame Finish
Enamel
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Brake Included
No
Caster Temp. Range Available
Yes
Non-Marking
Yes
Standards
ANSI ICWM
Includes
Spanner Bushing
Extended Lead
No
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Thread Guards
No
Replacement Wheel
4DU75
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Construction
Kingpin
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
3000 to 5999 lb
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Wheel Core Material
Steel
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
4,000 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Hardness Rating
170 BHN
Mounting Hole Type
Slot
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
