  11. Plate Caster, Swivel, Heavy-Duty, 3500 lb.

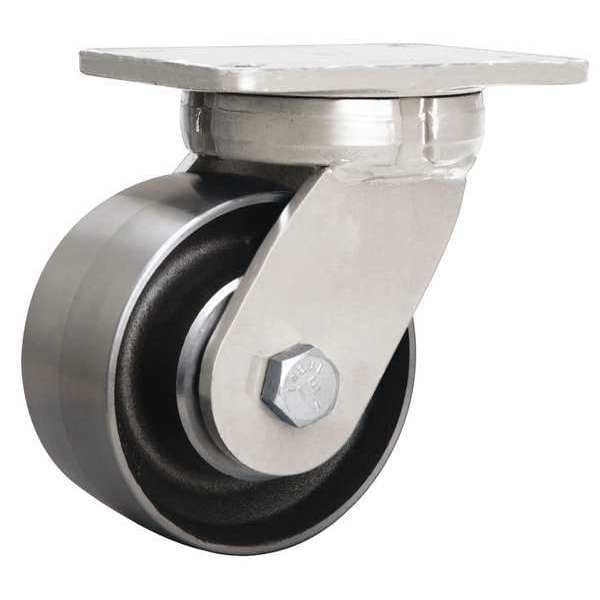

Hamilton Plate Caster, Swivel, Heavy-Duty, 3500 lb. S-SECJ-6FSH - main

Plate Caster, Swivel, Heavy-Duty, 3500 lb.

  • Mfr # S-SECJ-6FSH

  • Zoro # G7426049

product price: $213.43
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-SECJ-6FSH
Zoro #
G7426049
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5 1/4 in
Overall Height
8in
For Axle Dia.
3/4 in
Overall Wheel Width
2 1/2 in
Inside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Length
6.125 in
Mounting Plate Width
5 1/4 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Width
4.125 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
3500 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Application
Commercial, General Purpose, Industrial, Institutional
Wheel Color
Silver
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. W-625-FSH-3/4MC
Standards
ANSI ICWM
Includes
Spanner
Extended Lead
No
Thread Guards
No
Caster Brake Included
No
Features
Corrosion Resistant
Swivel Lock Type
No Lock Included
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Steel
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Extra Hard
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
3,500 lb
Compatible With
W-625-FSH-3/4MC
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Maximum
350 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature Range
-50 Degrees to 350 Degrees F

Description

Swivel, Plate Caster, Load Rating 3500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
