Shop HAMILTON

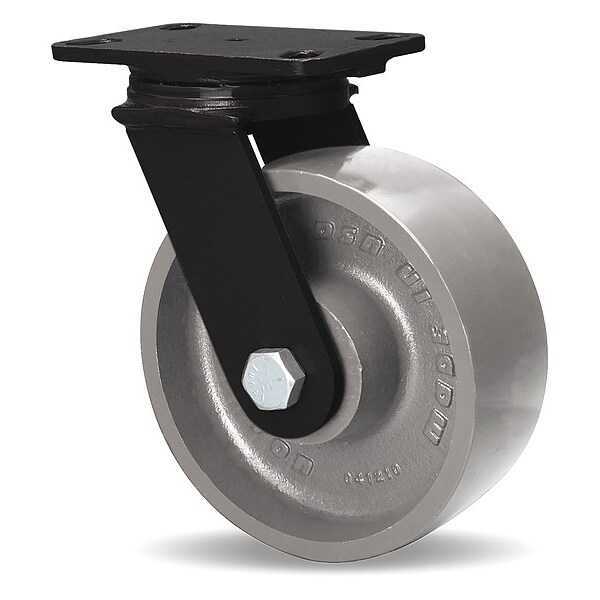

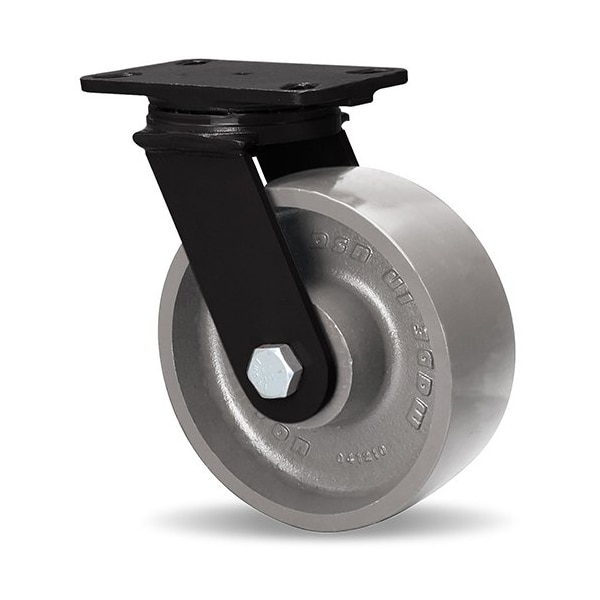

Plate Caster, Swivel, Iron, 10 1/4"H

  • Mfr # S-FMK-83HMB

  • Zoro # G9074394

product price:
$
578.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
3 in
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-FMK-83HMB
Zoro #
G9074394
UPC #
-
Country of Origin
United States
Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Load Rating
1040 lb
For Surface Type
Concrete
Includes Mounting Fasteners
No
Wheel Type
Flat-Free
Swivel Lead
2 1/2 in
Frame Color
Black
Series
MagmaMax
Includes Thread Guards
No
ESD Conductive
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
NSF Listed
No
Frame Finish
Enamel
Leveling Caster
No
Features
Durable, High Heat, Quiet Operation, Reliable
With Toe Plate
No
Wheel Core Material
Iron
Swivel Raceway Type
Single Ball
Frame Construction
Forged
Wheel Core Type
Solid
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
Wheel Bearing Material
Stainless Steel
Tire Style
Tubeless
Operating Temperature Range
-50 Degrees to 200 Degrees F
Tread
Flat
Swivel Lock Type
No Lock Included
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Extra Hard
Swivel Construction
Kingpinless
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
1,040 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 1040 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
