  6. Plate Caster, Rigid, Iron, 10 1/4"H

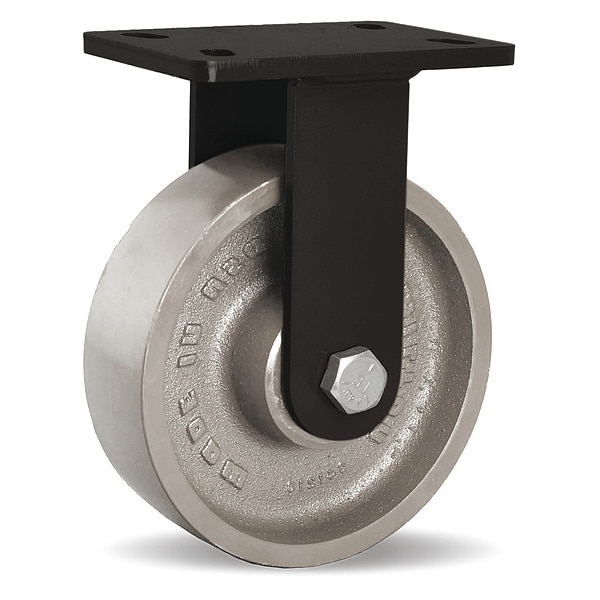

Hamilton Plate Caster, Rigid, Iron, 10 1/4"H R-FMK-83HMB - main

Plate Caster, Rigid, Iron, 10 1/4"H

  • Mfr # R-FMK-83HMB

  • Zoro # G9071789

product price:  $355.99
/ea
Free Shipping & Returns

Key Features

ESD Conductive
Yes
Number of Mounting Holes
4
Wheel Type
Flat-Free
Wheel Dia.
8 in
Mounting Plate Thickness
5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-FMK-83HMB
Zoro #
G9071789
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Mounting Plate Thickness
5/16 in
For Axle Dia.
3/4 in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
4 1/2 in x 6 1/2 in
Overall Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Mounting Height
10 1/4 in
Wheel Width
3 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in

Details

ESD Conductive
Yes
Number of Mounting Holes
4
Wheel Type
Flat-Free
Caster Brake Type
No Brake
Caster Frame Material
Steel
Load Rating
1040 lb
Wheel/Tread Color
Silver
Wheel/Tread Material
Iron
Core Color
Silver
Wheel Bearing Material
Stainless Steel
Series
MagmaMax
Includes Mounting Fasteners
No
Frame Finish
Enamel
NSF Listed
No
Item
Plate Caster
Caster Plate Hole Pattern
A
Wheel/Tread Hardness Rating
Extra Hard
Non-Marking
No
For Surface Type
Concrete
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Features
Durable, High Heat, Quiet Operation, Reliable
Number of Wheels
1
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Includes Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Core Type
Solid
Tire Style
Tubeless
Wheel Bearing Type
Ball
Swivel Bearing Seal Type
Sealed
Frame Construction
Forged
Frame Color
Black
Leveling Caster
No
Tread
Flat
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Includes Spanner Bushing
Yes
Swivel Raceway Type
Roller
Standards
ANSI ICWM
Caster Mounting Type
Plate
Caster Sub-Type
Rigid
Operating Temperature Range
-50 Degrees to 200 Degrees F
With Toe Plate
No
Swivel Lead
1 3/4 in
Load Capacity - Maximum
1,040 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
170 BHN

Description

Rigid, Plate Caster, Load Rating 1040 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
