  11. Plate Caster, Swivel, Iron, 5 5/8"H

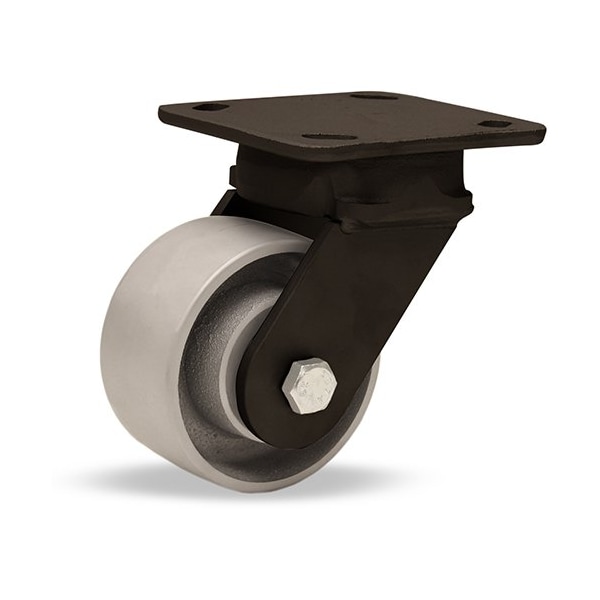

Hamilton Plate Caster, Swivel, Iron, 5 5/8"H S-WHK-4HMB-H4SL-FB - main

Plate Caster, Swivel, Iron, 5 5/8"H

  • Mfr # S-WHK-4HMB-H4SL-FB

  • Zoro # G9072251

product price: $313.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Caster Brake Type
Side Brake
Wheel Dia.
4 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-WHK-4HMB-H4SL-FB
Zoro #
G9072251
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Swivel Radius
3 5/8 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Caster Brake Type
Side Brake
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Frame Construction
Forged
Wheel Bearing Material
Stainless Steel
For Surface Type
Concrete
Features
Durable, High Heat, Quiet Operation, Reliable
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes Spanner Bushing
Yes
Load Rating Range
300 to 999 lb
Brake Location
Right Side
Wheel Type
Flat-Free
Standards
ANSI ICWM
Leveling Caster
No
Includes Thread Guards
No
Frame Color
Black
Frame Finish
Enamel
Swivel Raceway Type
Single Ball
Wheel Core Type
Solid
Operating Temperature Range
-50 Degrees to 200 Degrees F
Swivel Bearing Seal Type
Open
Includes Mounting Fasteners
No
Series
Inferno
Swivel Construction
Kingpinless
Tire Style
Tubeless
ESD Conductive
Yes
Swivel Lock Type
4-Position Swivel Lock
Wheel Core Material
Iron
Swivel Lead
1 3/4 in
NSF Listed
No
With Toe Plate
No
Wheel/Tread Hardness Rating
Extra Hard
Tread
Flat
Load Capacity - Maximum
400 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type 4-Position Swivel Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
