Shop HAMILTON

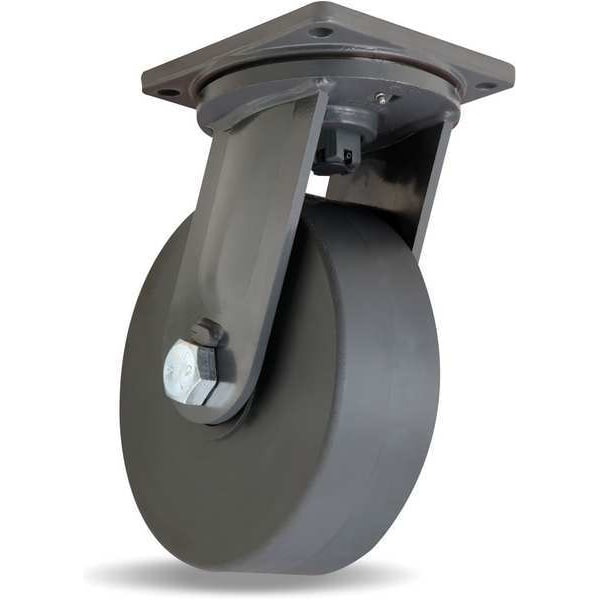

Plate Caster, Swivel, Nylon, 12 in., 10,000 lb.

  • Mfr # S-MD-124NYB
  • Zoro # G7083176
product price:
$
1,092.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
1/2 in
Caster Frame Material
Steel
Features
Floor Protective
Includes
Spanner Bushing
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-MD-124NYB
Zoro #
G7083176
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Wheel Width
4 in
Wheel Dia.
12 in
Overall Height
15-1/2"
Mounting Height
15 1/2 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Length
7 in
Overall Wheel Width
4 in
For Axle Dia.
1 1/4 in
Mounting Plate Width
8 1/2 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Thickness
5/8 in
Fits Chest Size
Floor Protective

Details

Caster Frame Material
Steel
Features
Floor Protective
Includes
Spanner Bushing
Caster Temp. Range Available
Yes
Caster Stem Type
No Stem/Plate Included
Standards
ANSI ICWM
Inside Bolt Hole Spacing
7 in x 7 in
Caster Sub-Type
Swivel
Number of Wheels
1
Wheel Color
Black
Load Rating
10,000 lb
Thread Guards
No
Replacement Wheel
23EF92
Item
Plate Caster
Outside Bolt Hole Spacing
7 in x 7 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Extended Lead
No
Caster Brake Included
No
Frame Finish
Enamel
Non-Marking
Yes
Caster Plate Hole Pattern
D
Core Color
Black
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Load Rating Range
6000 lb and Greater
Includes Thread Guards
No
Swivel Raceway Type
Roller
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
10,000 lb
For Surface Type
Concrete
Mounting Plate Shape
Square
Wheel Core Type
Solid
Mounting Hole Type
Hole
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 10,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
