  11. Plate Caster, Swivel, Nylon, 15 1/2"H

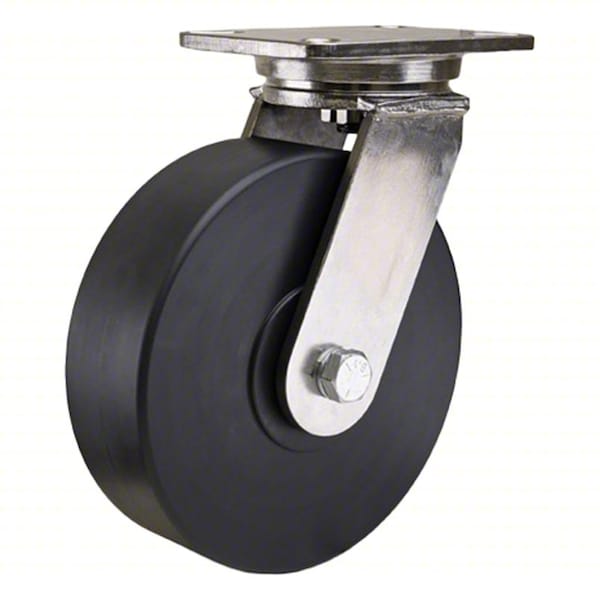

Hamilton Plate Caster, Swivel, Nylon, 15 1/2"H S-CHS-12NYSB - main

Plate Caster, Swivel, Nylon, 15 1/2"H

  • Mfr # S-CHS-12NYSB

  • Zoro # G514867769

product price: $1,373.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Width
3 in
Mounting Height
15 1/2 in
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-CHS-12NYSB
Zoro #
G514867769
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
12 in
Wheel Width
3 in
Mounting Height
15 1/2 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
For Axle Dia.
3/4 in
Mounting Plate Length
7 1/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
3.375 in
Hub Length
2 1/2 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Width
4.125 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Length
5.25 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Swivel Construction
Kingpin
Wheel Type
Flat-Free
Features
Durability, High Relative Capacity, High Relative Cost, Low Cushioning, Quiet Operation
Application
Chemical Factories, Food Production Facilities, Pharmaceutical Houses, Wash-Down Environments
Series
CHS
Operating Temperature - Minimum
-30 Degrees F
Frame Construction
Forged
For Surface Type
Concrete
Wheel Core Material
Nylon
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Swivel Bearing Seal Type
Sealed
Wheel Bearing Material
Stainless Steel
Swivel Raceway Type
Precision Ball
Operating Temperature - Maximum
220 Degrees F
Load Capacity - Maximum
3,200 lb
Wheel Core Type
Solid
Includes Thread Guards
No

Description

Swivel, Plate Caster, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
