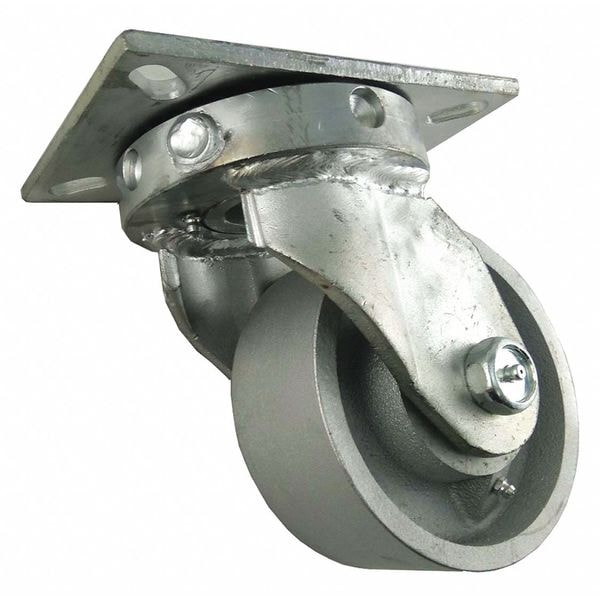

Zoro Select Plate Caster, Heavy-Duty, 6" Wheel Dia. 416P26 - main

Plate Caster, Heavy-Duty, 6" Wheel Dia.

  • Mfr # 416P26

  • Zoro # G1621941

product price:  $91.95
/ea

Key Features

Wheel Color
Gray
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Temp. Range Available
No
Load Rating
3500 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
416P26
Zoro #
G1621941
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Overall Height
7-7/8in
Wheel Width
2 1/2 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5 1/4 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
7 15/16 in
Mounting Plate Thickness
23/64in

Details

Wheel Color
Gray
Number of Wheels
1
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Temp. Range Available
No
Load Rating
3500 lb
Caster Brake Type
No Brake
Core Color
Gray
Thread Guards
No
Caster Plate Hole Pattern
A
Application
General Purpose
Caster Frame Material
Steel
Non-Marking
Yes
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Swivel
Caster Brake Included
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Tread Shape
Standard
Load Rating Range
3000 to 5999 lb
Wheel Bearing Type
Roller
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Iron
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Load Capacity - Maximum
3,500 lb
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 3500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 1/2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
