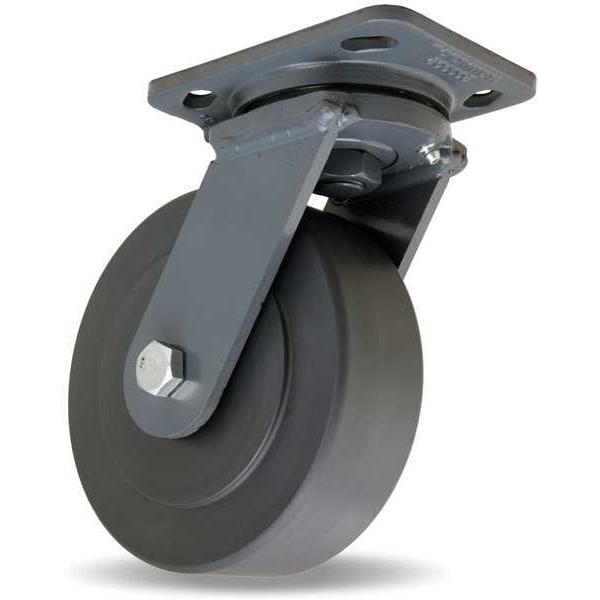

Plate Caster, Swivel, Nylon, 6 in., 2000 lb, Blk

  • Mfr # S-WH-6NYB-4SL-FB
  • Zoro # G7134827
product price:
$
296.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
B
Replacement Wheel
49H446
Load Rating
2000 lb
Caster Brake Included
Yes
Features
Floor Protective
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WH-6NYB-4SL-FB
Zoro #
G7134827
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-1/2"
Mounting Plate Size
4 in x 5 in
Mounting Height
7 1/2 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
5 in
Mounting Plate Thickness
1/4 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Fits Chest Size
Floor Protective

Details

Caster Plate Hole Pattern
B
Replacement Wheel
49H446
Load Rating
2000 lb
Caster Brake Included
Yes
Features
Floor Protective
Non-Marking
Yes
Caster Temp. Range Available
Yes
Includes
Brake
Number of Wheels
1
Caster Sub-Type
Swivel
Core Color
Black
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Extended Lead
No
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Thread Guards
No
Outside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Item
Plate Caster
Wheel Color
Black
Caster Brake Type
Total Lock
Frame Finish
Enamel
System of Measurement
Inch
Swivel Lock Type
4-Position Directional Lock
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel Core Material
Nylon
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Load Capacity - Maximum
2,000 lb
Wheel Hardness Rating
85 Shore D
For Surface Type
Concrete
Brake Location
Right Side
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
