Shop HAMILTON

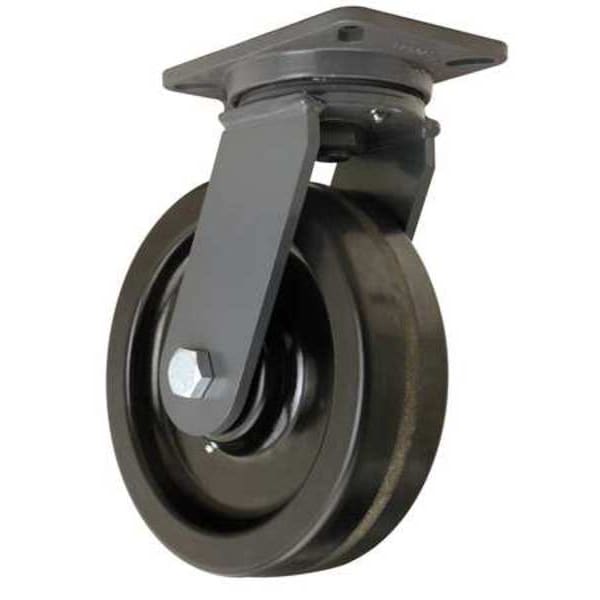

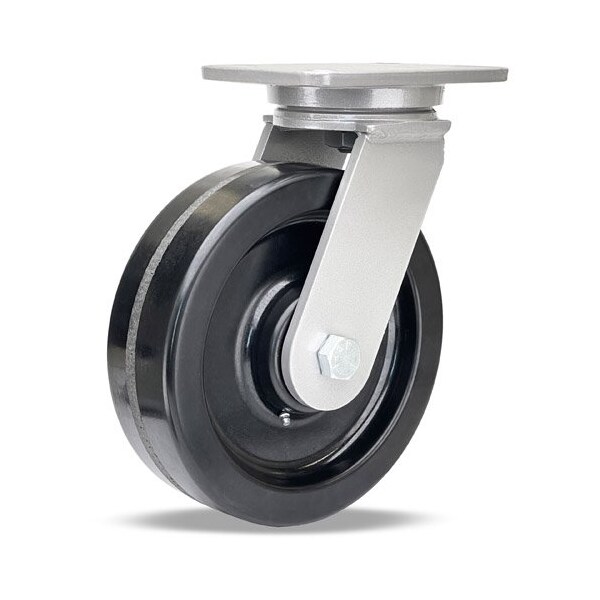

Plate Caster, Swivel, Phenolic, 10 in., 2900 lb

  • Mfr # S-CH-13PH

  • Zoro # G2969093

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Wheel Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-13PH
Zoro #
G2969093
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
12-1/2"
Wheel Dia.
10 in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Stem Dia.
No Stem
Mounting Height
12 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Width
5 1/4 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Length
7 1/4 in
Inside Slot Spacing - Width
3.375 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Outside Slot Spacing - Length
6.125 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Wheel Color
Black
Thread Guards
No
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Load Rating
2900 lb
Core Color
Black
Replacement Wheel
5VJ37
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Enamel
Caster Brake Included
No
Extended Lead
No
Includes
Spanner Bushing
Caster Plate Hole Pattern
A
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Phenolic
Swivel Construction
Kingpin
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
2,900 lb
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature Range
-50 Degrees to 300 Degrees F

Description

Swivel, Plate Caster, Load Rating 2900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
