  11. Plate Caster, Swivel, Phenolic, 4 in., 800 lb, B

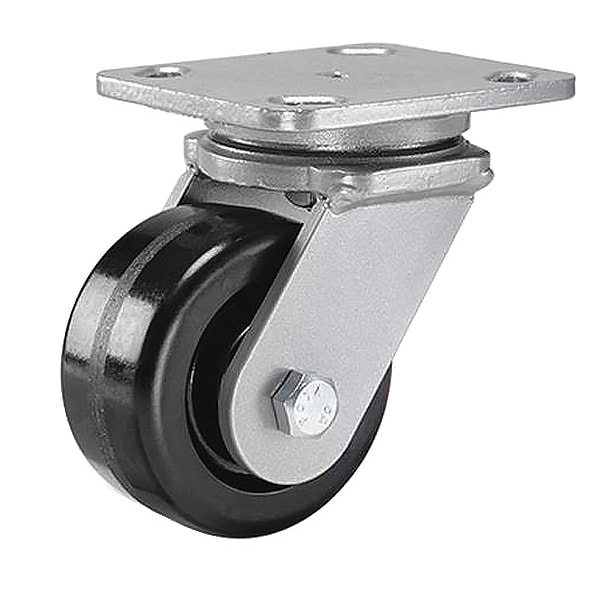

Hamilton Plate Caster, Swivel, Phenolic, 4 in., 800 lb, B S-WH-4P-4SL-FB - main

Plate Caster, Swivel, Phenolic, 4 in., 800 lb, B

  • Mfr # S-WH-4P-4SL-FB

  • Zoro # G1889991

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-WH-4P-4SL-FB
Zoro #
G1889991
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8in
Stem Dia.
No Stem
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
5 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Load Rating
800 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Wheel Color
Black
Thread Guards
No
Extended Lead
No
Replacement Wheel
23EK22
Caster Temp. Range Available
Yes
Frame Finish
Enamel
Caster Stem Type
No Stem/Plate Included
Includes
Four Position Swivel Lock
Standards
ANSI ICWM
Caster Brake Included
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Phenolic
Swivel Lock Type
4-Position Directional Lock
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Single Ball
Frame Color
Gray
Wheel Type
Flat-Free
Load Capacity - Maximum
800 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Brake Location
Right Side
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
