  6. Plate Caster, Swivel, Phenolic, 6 in., 2000 lb, A

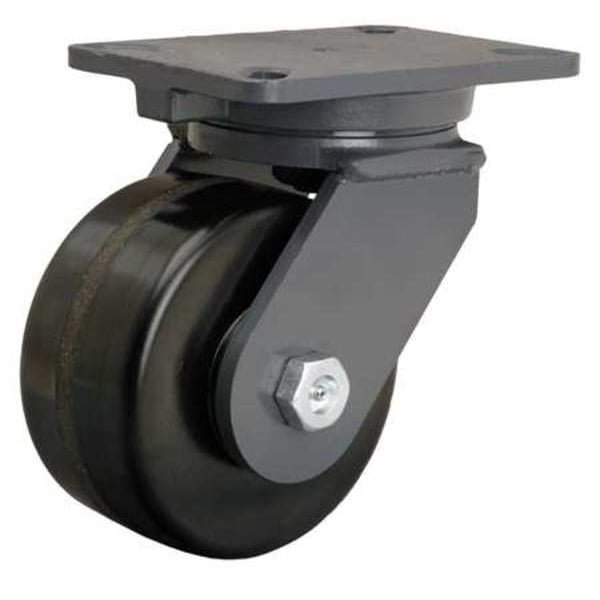

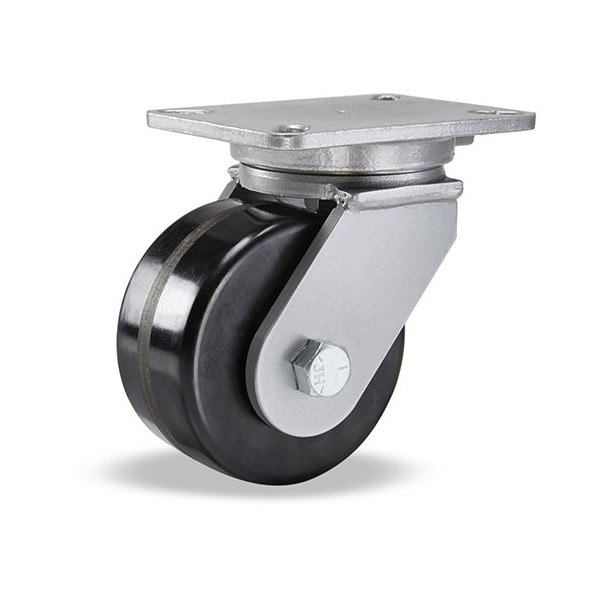

Hamilton Plate Caster, Swivel, Phenolic, 6 in., 2000 lb, A S-CH-63PH - main

Plate Caster, Swivel, Phenolic, 6 in., 2000 lb, A

  • Mfr # S-CH-63PH

  • Zoro # G0712451

product price:  $205.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Load Rating
2000 lb
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-CH-63PH
Zoro #
G0712451
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Wheel Dia.
6 in
Overall Height
8in
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
8 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in

Details

Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Load Rating
2000 lb
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Standards
ANSI ICWM
Core Color
Black
Replacement Wheel
5VJ79
Includes
Spanner Bushing
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Item
Plate Caster
Wheel Color
Black
Thread Guards
No
Caster Brake Included
No
Non-Marking
Yes
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
2,000 lb
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
