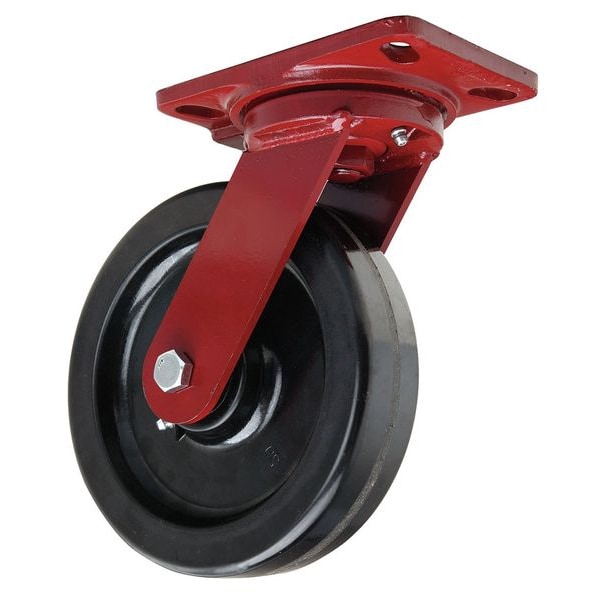

Hamilton Plate Caster, Swivel, Phenolic, 8 in., 1400 lb. S-HS-8P - main

Plate Caster, Swivel, Phenolic, 8 in., 1400 lb.

  • Mfr # S-HS-8P

  • Zoro # G7507491

product price:  $125.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2 in
Core Color
Black
Caster Temp. Range Available
Yes
Number of Wheels
1
Replacement Wheel
5VJ83
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-HS-8P
Zoro #
G7507491
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Wheel Dia.
8 in
Overall Height
9-3/4"
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
9 3/4 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Thickness
5/16 in
Mounting Plate Width
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Plate Caster
Core Color
Black
Caster Temp. Range Available
Yes
Number of Wheels
1
Replacement Wheel
5VJ83
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Color
Black
Thread Guards
No
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Includes
Spanner Bushing
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Enamel
Caster Frame Material
Steel
Caster Brake Included
No
Load Rating
1400 lb
Non-Marking
Yes
System of Measurement
Inch
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Phenolic
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Roller
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Load Capacity - Maximum
1,400 lb
Wheel Hardness Rating
90 Shore D
Mounting Hole Type
Slot
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature Range
-50 Degrees to 300 Degrees F

Description

Swivel, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
