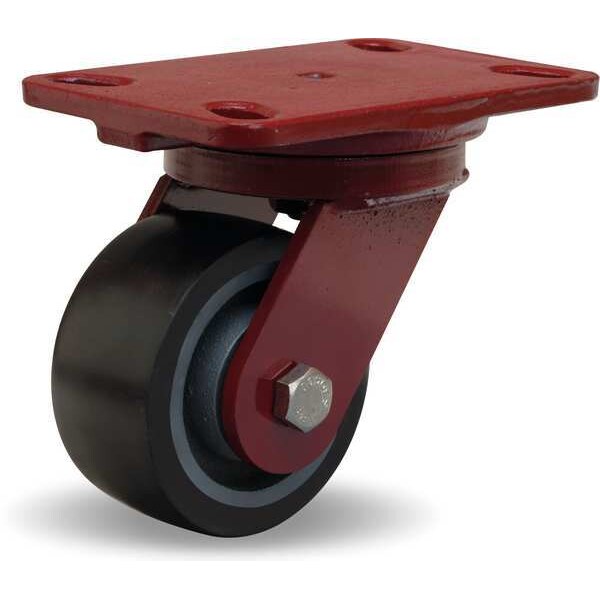

Hamilton Plate Caster, Swivel, Poly, 4 in., 975 lb. S-HS-4DB70 - main

Plate Caster, Swivel, Poly, 4 in., 975 lb.

  • Mfr # S-HS-4DB70

  • Zoro # G6434827

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
No
Extended Lead
No
Wheel Color
Black
Standards
ANSI ICWM
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-HS-4DB70
Zoro #
G6434827
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
5 5/8 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
5/16 in
For Axle Dia.
1/2 in

Details

Caster Brake Included
No
Extended Lead
No
Wheel Color
Black
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Replacement Wheel
49H454
Load Rating
975 lb
Features
Floor Protective
Frame Finish
Enamel
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Item
Plate Caster
Core Color
Gray
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Thread Guards
No
Includes
Spanner Bushing
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
975 lb
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 975 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
