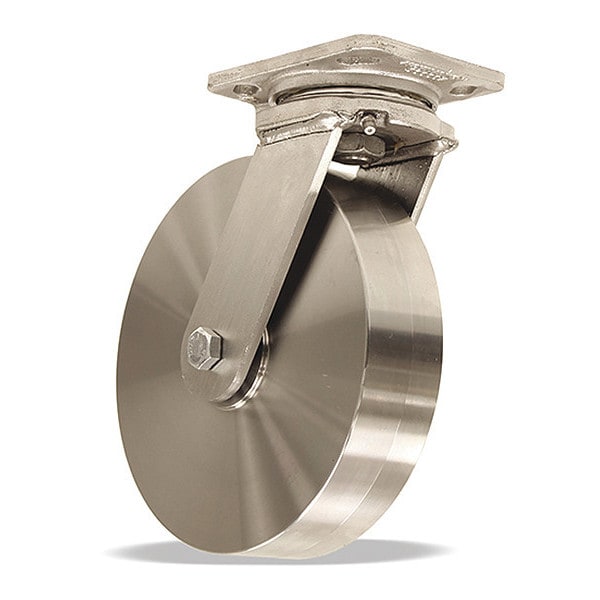

Stainless Steel Workhorse Swivel Caster, 8" x 2" Stainless Steel Wheel
- Mfr # S-WHS-8HSB
- Zoro # G1229203
product price:
$
837.99
/ea
Free Shipping & Returns
Key Features
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
1200 lb. @ 550 Degrees F, 800 lb. @ 750 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- S-WHS-8HSB
- Zoro #
- G1229203
- UPC #
- -
- Country of Origin
- United States
- Caster Sub-Type
- Swivel
- Item
- Swivel Whs 8X2 Hi-Heat Stainless Whl
- Caster Stem Type
- No Stem/Plate Included
- Caster Brake Included
- No
- Load Rating
- 1200 lb. @ 550 Degrees F, 800 lb. @ 750 Degrees F
- Number of Wheels
- 1
- Inside Bolt Hole Spacing
- 2 5/8 x 3 5/8
- Outside Bolt Hole Spacing
- 3 x 3
- Replacement Wheel
- W-820-HSB-1/2
- Standards
- ICWM
- Core Color
- Stainless
- Non-Marking
- No
- Frame Finish
- Stainless Steel
- Thread Guards
- No
- Caster Frame Material
- Stainless Steel
- Caster Plate Hole Pattern
- B
- Series
- Stainless Steel Workhorse
- Number of Mounting Holes
- 4
- Wheel/Tread Hardness Rating
- Extra Hard
- Wheel/Tread Color
- Stainless
- Wheel/Tread Material
- Stainless Steel
- Tread Shape
- Standard
- Operating Temperature Range
- -80 to 750 deg(F)
- Wheel Core Material
- Stainless Steel
Dimensions
- Stem Dia.
- No Stem
- Overall Height
- 9-1/2in
- Wheel Dia.
- 8
- Wheel Width
- 2
- Mounting Bolt Dia.
- 0.375
- Mounting Height
- 9.5
- Mounting Plate Size
- 4 x 5
Description
Stainless Steel Workhorse Swivel Caster rated up to 750° F with 8" x 2" Stainless Steel Wheel with 1/2" High Heat Stainless Steel Shielded Precision Ball Bearings
