  11. Swvl Plate Caster, Rubr, 9-7/8", 2200 lb.

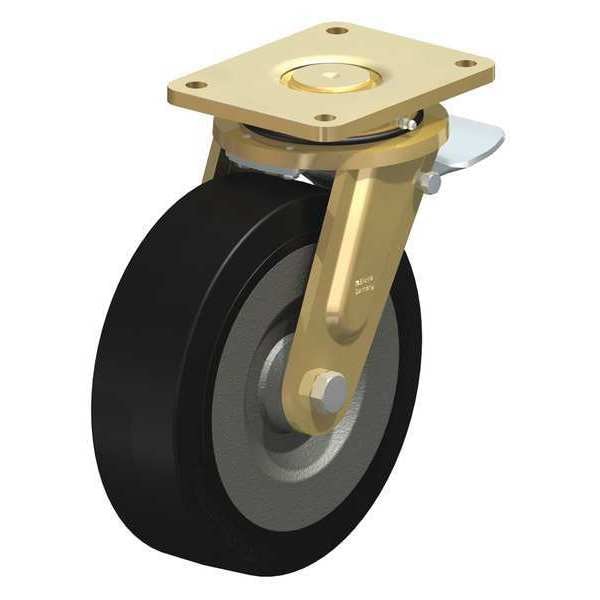

Blickle Swvl Plate Caster, Rubr, 9-7/8", 2200 lb. LS-SE 252K-ST - main

Swvl Plate Caster, Rubr, 9-7/8", 2200 lb.

  • Mfr # LS-SE 252K-ST

  • Zoro # G9663766

product price: $567.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Wheel Dia.
250 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-SE 252K-ST
Zoro #
G9663766
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
250 mm
Wheel Width
80 mm
Mounting Plate Size
140 mm x 175 mm
Mounting Plate Thickness
15 mm
Mounting Bolt Dia.
M14
Swivel Radius
200 mm
Overall Height
305 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
105 mm x 140 mm
Inside Bolt Hole Spacing
105 mm x 140 mm
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. SE 252/25K
Standards
RoHS, ICWM
Includes
Stop-Top Total-Lock Brake
Application
Retail, Industrial, Commercial
Extended Lead
No
Caster Brake Included
Yes
Tread Color
Black
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Pressed Steel
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Series
LS Series
Load Capacity
1000 kg
ESD Conductive
No
Load Rating Range
Extra-Heavy Duty
Includes Thread Guards
No
Tread
Standard
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
