  6. Plate Caster, Swivel, Poly, 6 in., 2200 lb.

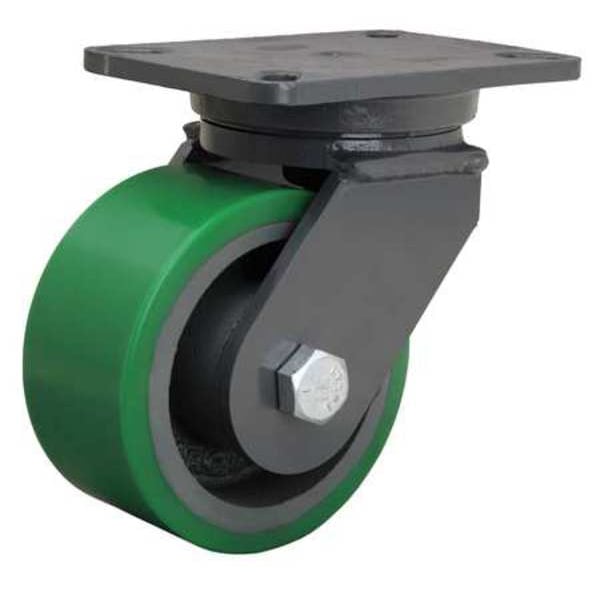

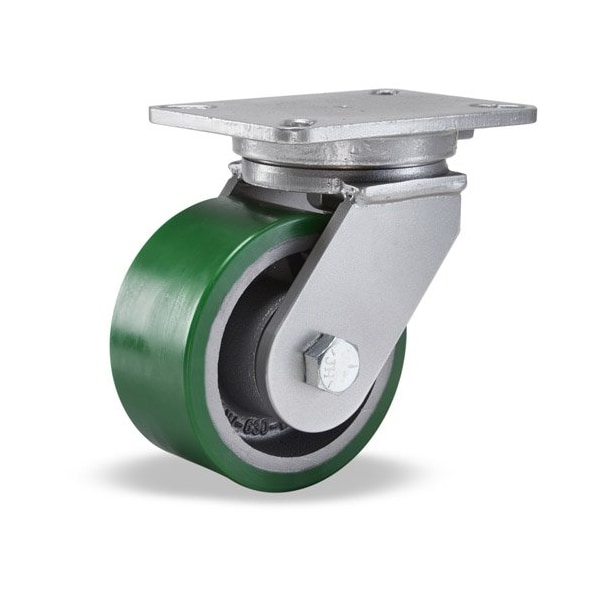

Hamilton Plate Caster, Swivel, Poly, 6 in., 2200 lb. S-CH-63DB - main

Plate Caster, Swivel, Poly, 6 in., 2200 lb.

  • Mfr # S-CH-63DB

  • Zoro # G3108883

product price:  $252.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
6 in
Load Rating
2200 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Mounting Plate Size
5 1/4 in x 7 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S-CH-63DB
Zoro #
G3108883
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
8in
Wheel Width
3 in
Stem Dia.
No Stem
Mounting Height
8 in
Inside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in
Mounting Plate Width
5 1/4 in
Mounting Plate Length
7 1/4 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in

Details

Item
Plate Caster
Load Rating
2200 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Stem Type
No Stem/Plate Included
Includes
Spanner Bushing
Frame Finish
Enamel
Replacement Wheel
4DU69
Thread Guards
No
Wheel Color
Green
Extended Lead
No
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Standards
ANSI ICWM
System of Measurement
Inch
Caster Brake Type
No Brake
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Wheel Core Material
Iron
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel Type
Flat-Free
Load Capacity - Maximum
2,200 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
