  6. Plate Caster, Swivel, Poly, 6 in., 3500 lb.

This item is Discontinued.

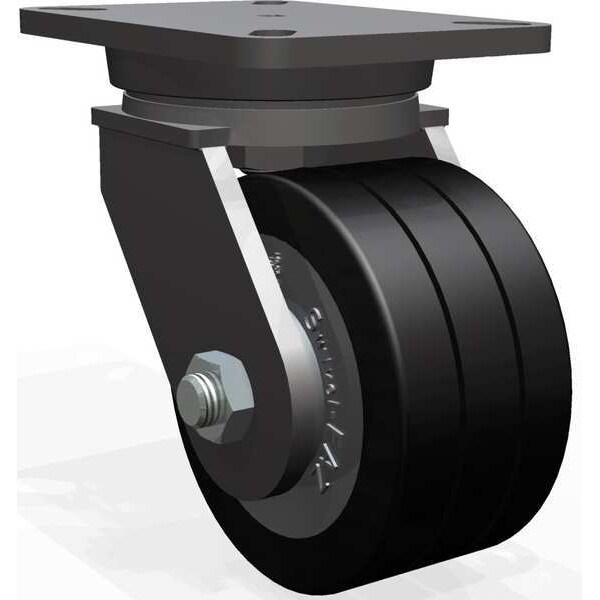

Hamilton Plate Caster, Swivel, Poly, 6 in., 3500 lb. S-CH-63SWF

Plate Caster, Swivel, Poly, 6 in., 3500 lb. (Discontinued)

  • Mfr # S-CH-63SWF
  • Zoro # G7004033
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-CH-63SWF
Zoro #
G7004033
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
8"
Wheel Dia.
6 in
Wheel Width
3 in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Caster Plate Size
5-1/4" x 7-1/4"
Caster Plate Thickness
1/2"
Plate Thickness
1/2"
Plate Size
5-1/4" x 7-1/4"
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
8 in

Details

Caster Brake Included
No
Caster Load Rating Range
Heavy-Duty
Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Aluminum/Polyurethane
Load Rating
3500 lb
Number of Wheels
3
Caster Stem Type
No Stem/Plate Included
Caster Raceway
Single Ball
Frame Finish
Enamel
Core Color
Silver
Caster Swivel Lock Type
No Lock Included
Durometer
75 Shore D
Caster Core Material
Aluminum
Caster Temp. Range
-40 Degrees to 200 Degrees F
Plate Caster Bolt Hole Pattern
A
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Ergonomic Applications, Material Carts, Premium Forged Steel Casters
Caster Wheel Bearings
Ball
Caster Product Group
Swivel Caster
Thread Guards
No
Frame Material
Forged Steel
Item
Standard Plate Caster
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Max. Temp.
200 Degrees F
Extended Lead
No
Non-Marking
Yes
Caster Min. Temp.
-40 Degrees F
Standards
ICWM
Replacement Wheel
49H463
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Features
Swivel-Eaz(R)
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Color
Black
Caster Brake Type
No Brake Included
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Hardness
75 Shore D
Wheel Bearing Type
Precision Ball
Load Rating Range
3000 to 5999 lb
Includes Thread Guards
No
Mounting Plate Bolt Hole Pattern
A
Wheel Core Material
Aluminum
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Black

Description

Swivel, Standard Plate Caster, Load Rating 3500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 3, Caster Brake Type No Brake Included, Tread Shape Standard
