  10. /
  11. Plate Caster, Swivel, Poly, 8 in., 1550 lb.
Shop All Plate Casters
Hamilton

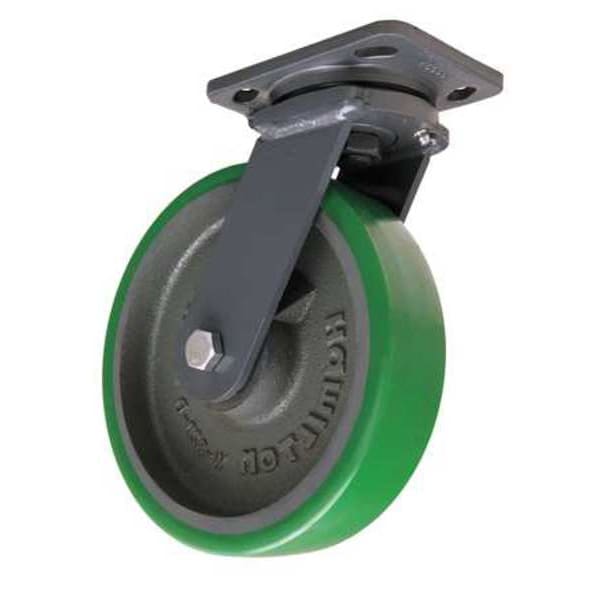

Plate Caster, Swivel, Poly, 8 in., 1550 lb.

original price: $155.04
7% off
new price: $143.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Cast Iron/Polyurethane
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Stem Dia. No Stem
Caster Plate Size 4" x 5"
Plate Size 4" x 5"
Mounting Bolt Dia. 1/2 in
Mounting Plate Size 4 in x 5 in
Mounting Height 9 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Heavy-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Cast Iron/Polyurethane
Load Rating 1500 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Hole Pattern B
Caster Raceway Single Ball
Item Standard Plate Caster
Features Floor Protective
Caster Wheel Bearings Ball
Inside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Caster Plate Thickness 1/4"
Caster Min. Temp. -40 Degrees F
Includes Spanner Bushing
Outside Bolt Hole Spacing 3 in x 3 in
Caster Max. Temp. 200 Degrees F
Thread Guards No
Caster Temp. Range -40 Degrees to 200 Degrees F
Durometer 90 Shore A
Plate Caster Bolt Hole Pattern B
Caster Frame Material Steel
Caster Product Group Swivel Caster
Caster Swivel Lock Type No Lock Included
Replacement Wheel 4DU70
Frame Finish Enamel
Extended Lead No
Frame Material Forged Steel
Application Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Plate Thickness 1/4"
Non-Marking Yes
Caster Core Material Cast Iron
Core Color Gray
Wheel Color Green
Caster Temp. Range Available Yes
Standards ICWM
Caster Brake Type No Brake Included
Wheel/Tread Hardness 95 Shore A
Number of Mounting Holes 4
Load Rating Range 1000 to 2999 lb
Mounting Plate Bolt Hole Pattern B
Swivel Construction Kingpin
Swivel Raceway Type Single Ball
Swivel Lock Type No Lock Included
Wheel Bearing Type Precision Ball
Includes Thread Guards No
Wheel/Tread Hardness Rating Firm
Tread Shape Standard
Wheel Core Material Cast Iron
Wheel/Tread Material Polyurethane
Wheel/Tread Color Green

Description

Swivel, Standard Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
