Shop HAMILTON

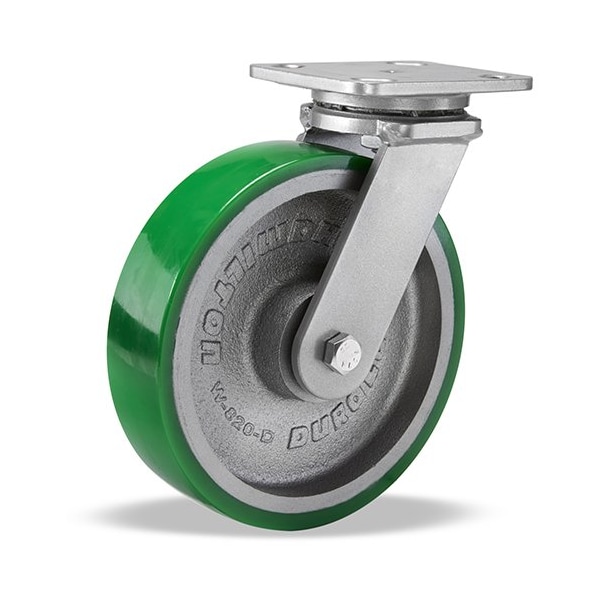

Plate Caster, Swivel, Polyurethane, 9 1/2"H

  • Mfr # S-WH-8DB

  • Zoro # G0882813

product price:
$
164.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
B
Overall Height
9-1/2"
Features
Floor Protective
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-WH-8DB
Zoro #
G0882813
UPC #
-
Country of Origin
United States
Caster Plate Hole Pattern
B
Item
Plate Caster
Features
Floor Protective
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Spanner Bushing
Caster Brake Included
No
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Load Rating
1500 lb
Caster Frame Material
Steel
Replacement Wheel
4DU70
Frame Finish
Enamel
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Core Color
Gray
Wheel Color
Green
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Number of Wheels
1
Caster Brake Type
No Brake
System of Measurement
Inch
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Wheel Core Material
Iron
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
95 Shore A
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
