  6. Plate Caster, Swivel, Poly, 8 in., 2000 lb., Grn
Hamilton Plate Caster, Swivel, Poly, 8 in., 2000 lb., Grn S-FM-8DB - main

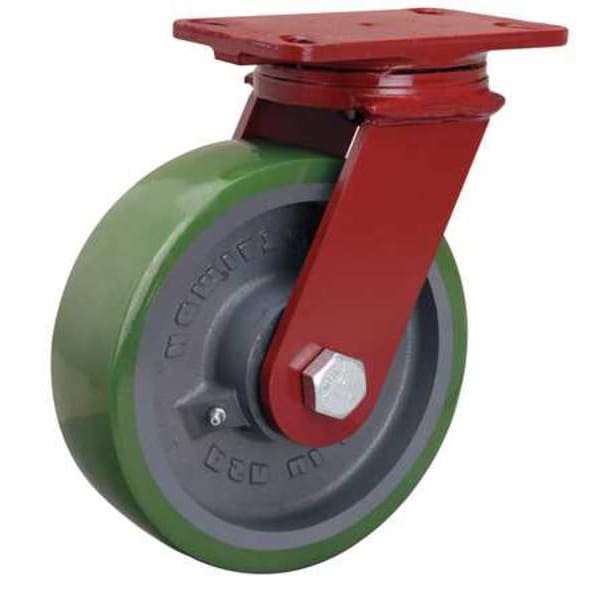

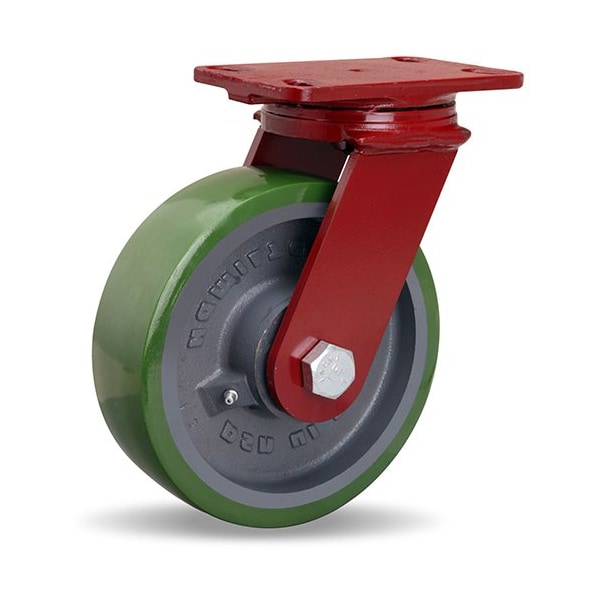

Plate Caster, Swivel, Poly, 8 in., 2000 lb., Grn

  • Mfr # S-FM-8DB

  • Zoro # G2955346

product price:  $247.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S-FM-8DB
Zoro #
G2955346
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 1/2 in
Mounting Height
10 1/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
10-1/8in
Overall Wheel Width
2 1/2 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2000 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Core Color
Gray
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Wheel Color
Green
Includes
Spanner Bushing
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Standards
ANSI ICWM
Features
Floor Protective
Caster Brake Included
No
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Enamel
Thread Guards
No
Replacement Wheel
23ER06
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Extended Lead
No
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Wheel Type
Flat-Free
Load Capacity - Maximum
2,000 lb
Wheel Hardness Rating
95 Shore A
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
