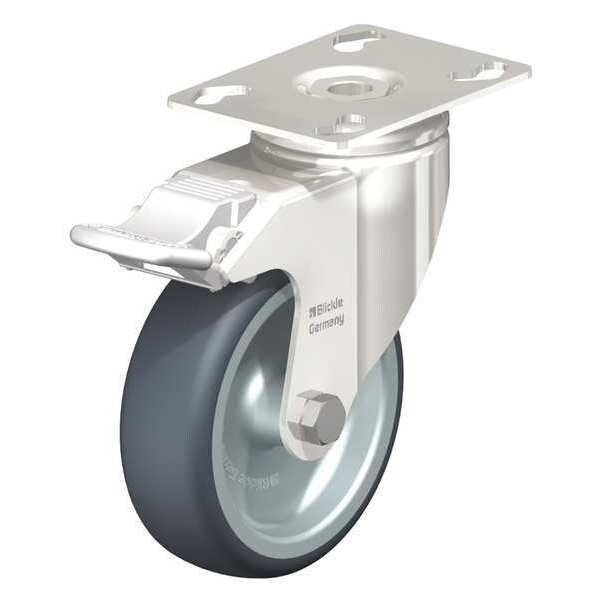

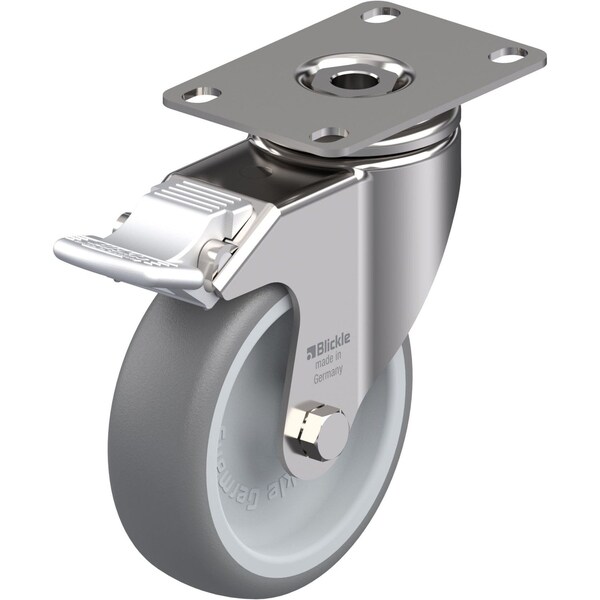

Blickle Swivel Plate Caster, TPR, 4", Brake LKPXA-TPA 101G-12-FI - main

Swivel Plate Caster, TPR, 4", Brake

  • Mfr # LKPXA-TPA 101G-12-FI

  • Zoro # G0889100

product price:  $53.15
/ea

Key Features

Wheel Dia.
4in
Caster Sub-Type
Swivel
Overall Height
5-23/64in
Caster Stem Type
No Stem/Plate Included
Load Rating
240 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-TPA 101G-12-FI
Zoro #
G0889100
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Overall Height
5-23/64in
Stem Dia.
No Stem
Wheel Width
1-1/4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-9/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
240 lb
Caster Brake Included
Yes
Number of Wheels
1
Caster Mounting Type
Plate
Tread
Standard
Frame Finish
Stainless Steel
Caster Brake Type
Stop Fix Brake (Total Lock)
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. TPA 101/12G
Non-Marking
Yes
Core Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Includes
Stop-Fix Total-Lock Brake
Tread Color
Gray
System of Measurement
Inch
Standards
RoHS, ICWM, NSF
Caster Frame Material
Stainless Steel
Extended Lead
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Load Capacity
245 lb
Series
LKPXA Series
Wheel Core Material
Polypropylene
ESD Conductive
No
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Hardness Rating
85 Shore A
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Wheel Bearing Type
Plain
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel With Brake
