  11. Plate Caster, Swivel, Polyurethane, 13"H

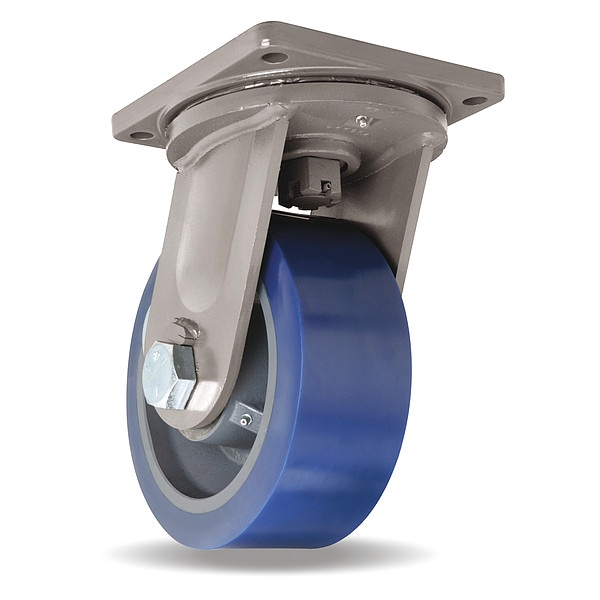

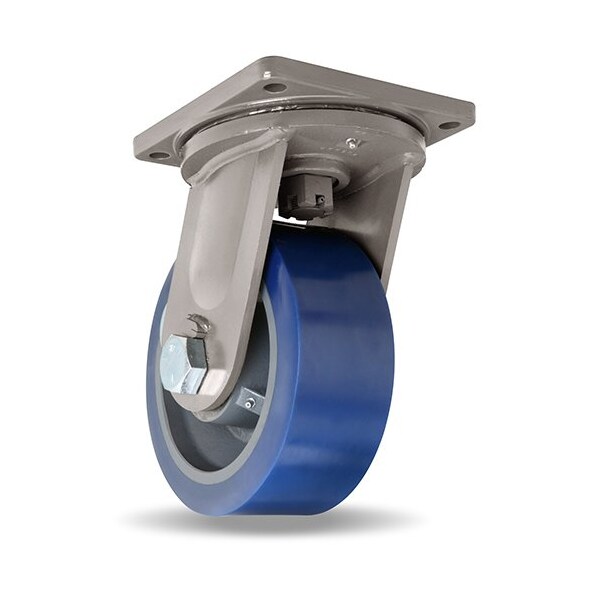

Hamilton Plate Caster, Swivel, Polyurethane, 13"H S-MD-104SYT-4SL-HCB - main

Plate Caster, Swivel, Polyurethane, 13"H

  • Mfr # S-MD-104SYT-4SL-HCB

  • Zoro # G9071579

product price: $1,108.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-MD-104SYT-4SL-HCB
Zoro #
G9071579
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
4 in
Mounting Height
13 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
Swivel Radius
8 3/8 in
For Axle Dia.
1 1/4 in
Overall Wheel Width
4 in
Bolt Hole Spacing - Length
7 in
Mounting Plate Length
8 1/2 in
Mounting Plate Width
8 1/2 in
Bolt Hole Spacing - Width
7 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
5000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Blue
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
7 in x 7 in
Inside Bolt Hole Spacing
7 in x 7 in
Caster Plate Hole Pattern
D
Tire Style
Tubeless
Operating Temperature Range
-50 Degrees to 200 Degrees F
Wheel Core Material
Steel
Tread
Flat
Frame Color
Silver
Swivel Construction
Kingpin
Swivel Lead
3 in
With Toe Plate
No
NSF Listed
No
Leveling Caster
No
Load Rating Range
3000 to 5999 lb
Wheel/Tread Hardness Rating
Firm
Brake Location
Face
Frame Finish
Powder Coated
Swivel Raceway Type
Roller
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
ESD Conductive
Yes
Includes Thread Guards
No
Wheel Type
Flat-Free
Standards
ANSI ICWM
Frame Construction
Forged
Includes Spanner Bushing
Yes
Swivel Lock Type
4-Position Directional Lock
Swivel Bearing Seal Type
Open
Series
Maxi-Duty
Includes Mounting Fasteners
No
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Concrete
Load Capacity - Maximum
5,000 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 5000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 10 in, Wheel Width 4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
