  11. Plate Caster, Swivel, Rubber, 10 in., 790 lb., Blk

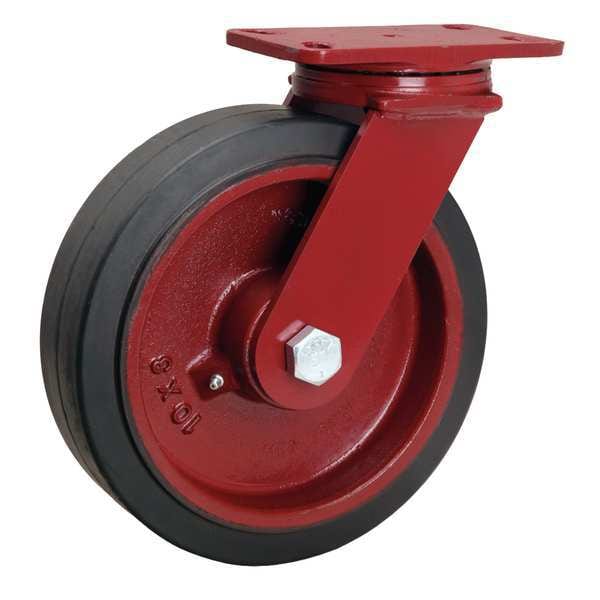

Hamilton Plate Caster, Swivel, Rubber, 10 in., 790 lb., Blk S-FM-10RB - main

Plate Caster, Swivel, Rubber, 10 in., 790 lb., Blk

  • Mfr # S-FM-10RB

  • Zoro # G0922013

product price: $192.83
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-FM-10RB
Zoro #
G0922013
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
2 1/2 in
Mounting Height
11 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
11-1/2in
Stem Dia.
No Stem
Mounting Plate Width
4 1/2 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
790 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Red
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Extended Lead
No
Includes
Spanner Bushing
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Features
Floor Protective
Frame Finish
Enamel
Thread Guards
No
Wheel Color
Black
Caster Brake Included
No
Replacement Wheel
Mfr. No. W-1025-RB-3/4
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Soft
Load Rating Range
300 to 999 lb
Wheel Core Material
Iron
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Type
Flat-Free
Load Capacity - Maximum
790 lb
Compatible With
W-1025-RB-3/4
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature - Minimum
-70 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-70 Degrees to 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 790 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
