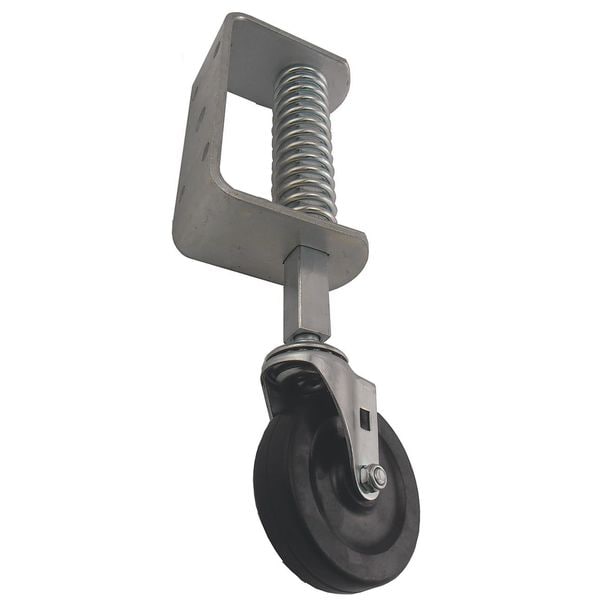

Gate Cstr, Rubbr, 3in, 125lb, 1/4in Plt Thck

  • Mfr # 32J781

  • Zoro # G4809077

product price:
$
44.99
/ea

Key Features

Non-Marking
Yes
Load Rating
125 lb
Overall Height
10 15/16 in
Core Color
Black
Max. Spring Deflection
1-3/4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
32J781
Zoro #
G4809077
UPC #
190735901472
Country of Origin
China

Dimensions

Overall Height
10 15/16 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Stem Length
No Stem
Wheel Dia.
3 in
Wheel Width
7/8 in
Mounting Plate Size
5-3/8 in x 2 in
Mounting Plate Width
2 in
Mounting Plate Length
5 3/8 in
Bolt Hole Spacing - Length
3 in
Bolt Hole Spacing - Width
1.25 in
Mounting Plate Thickness
1/4in

Details

Non-Marking
Yes
Load Rating
125 lb
Core Color
Black
Max. Spring Deflection
1-3/4"
Item
Side Mount Caster
Features
Weight Activated
Outside Bolt Hole Spacing
1-1/4 in x 3 in
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
1-1/4 in x 3 in
Wheel Color
Black
Load Rating Range
0 to 299 lb
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel Core Material
Rubber
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Rubber
Maximum Compression
1 11/16 in
Wheel Bearing Type
Plain
Caster Frame Material
Steel
Operating Temperature - Minimum
-40 Degrees F
Mounting Plate Shape
Rectangle
Maximum Compression Force
20 lb
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
55 Shore D
Mounting Hole Type
Hole
Load Capacity - Maximum
125 lb
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
160 Degrees F

Description

Side Mount Caster, 125 lb Load Rating, 0 to 299 lb Load Rating Range, 3 in Wheel Dia., 7/8 in Wheel Width, 10 15/16 in Overall Height, Wheel Bearing Type Plain, I Mounting Plate Bolt Hole Pattern, Mounting Plate Size 5-3/8 in x 2 in, 1-1/4 in x 3 in Inside Bolt Hole Spacing, 1-1/4 in x 3 in Outside Bolt Hole Spacing, Yes Non-Marking, 1 11/16 in Maximum Compression, 20 lb Maximum Compression Force
