Hamilton Plate Caster, Swivel, Steel, 5 5/8"H S-WHK-4HFSB - main

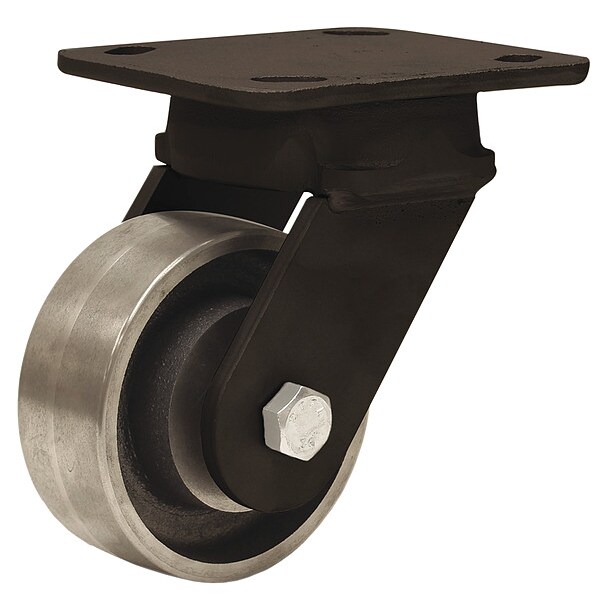

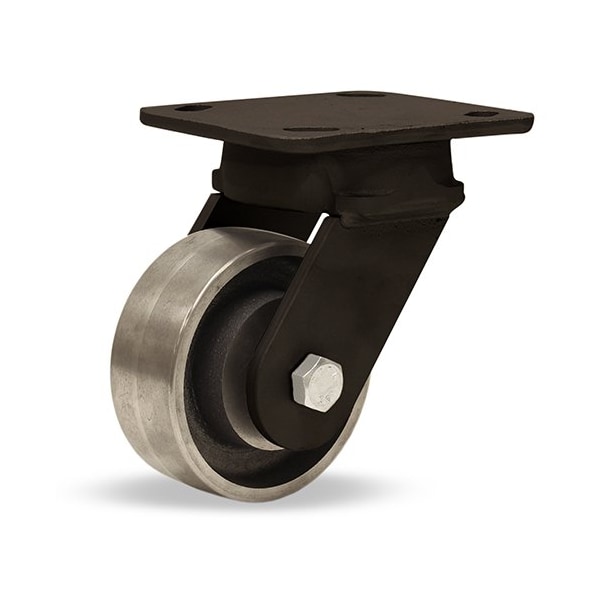

Plate Caster, Swivel, Steel, 5 5/8"H

  • Mfr # S-WHK-4HFSB

  • Zoro # G9072559

product price: $296.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
4 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-WHK-4HFSB
Zoro #
G9072559
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3 5/8 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
5 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
560 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Swivel Lock Type
No Lock Included
NSF Listed
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Core Type
Solid
Features
Durable, High Heat, Quiet Operation, Reliable
Swivel Bearing Seal Type
Open
Load Rating Range
300 to 999 lb
Includes Spanner Bushing
Yes
Includes Thread Guards
No
For Surface Type
Concrete
ESD Conductive
Yes
Operating Temperature Range
-50 Degrees to 200 Degrees F
Swivel Lead
1 3/4 in
Frame Color
Black
Tread
Flat
Includes Mounting Fasteners
No
Standards
ANSI ICWM
Leveling Caster
No
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Single Ball
Frame Construction
Forged
Wheel Type
Flat-Free
Tire Style
Tubeless
Frame Finish
Enamel
Wheel Bearing Material
Stainless Steel
With Toe Plate
No
Wheel Core Material
Steel
Series
Inferno
Load Capacity - Maximum
560 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 560 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
