  11. PlateCaster, Swivel, Polyurethane, 15 5/8"H

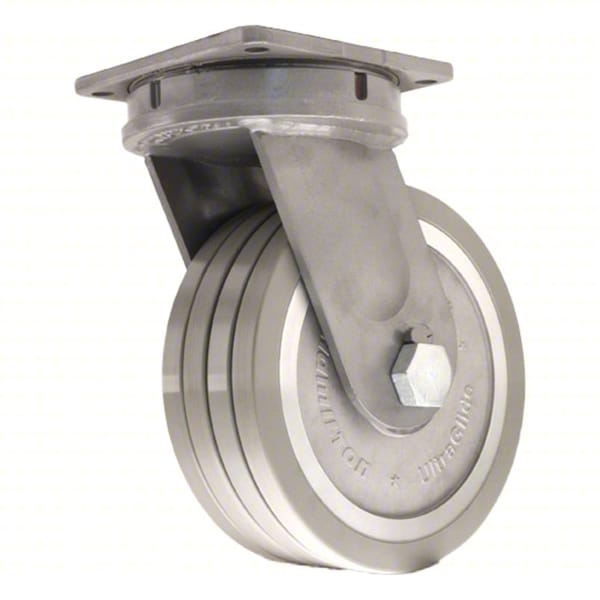

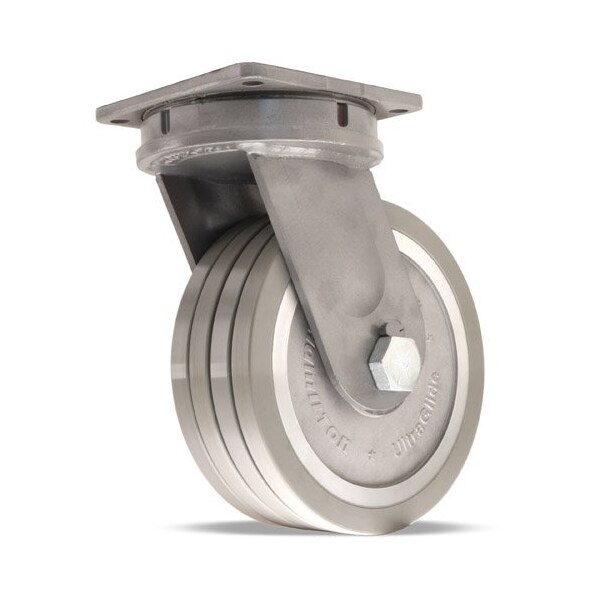

Hamilton PlateCaster, Swivel, Polyurethane, 15 5/8"H S-ZFMD-124SWF95 - main

PlateCaster, Swivel, Polyurethane, 15 5/8"H

  • Mfr # S-ZFMD-124SWF95

  • Zoro # G014867788

product price: $1,331.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
12 in
Wheel Width
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-ZFMD-124SWF95
Zoro #
G014867788
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
12 in
Wheel Width
4 in
Mounting Height
15 5/8 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
Overall Wheel Width
4 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Length
7 in
Mounting Plate Width
8 1/2 in
Bolt Hole Spacing - Width
7 in
Hub Length
3 1/4 in
For Axle Dia.
1 1/4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
4
Swivel Construction
Kingpinless
Features
Durability, High Relative Capacity, High Relative Cost, Medium Cushioning, Quiet Operation
Frame Finish
Powder Coated
Series
ZFMD
Wheel Type
Flat-Free
Wheel Core Material
Aluminum
Mounting Hole Type
Hole
Swivel Bearing Seal Type
Sealed
Operating Temperature - Minimum
-50 Degrees F
For Surface Type
Concrete
Operating Temperature - Maximum
200 Degrees F
Load Capacity - Maximum
5,650 lb
Mounting Plate Shape
Square
Wheel Core Type
Solid
Includes Thread Guards
No
Frame Construction
Forged
Swivel Raceway Type
Precision Ball

Description

Swivel, Plate Caster, Wheel Dia. 12 in, Wheel Width 4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 4, Caster Brake Type No Brake, Tread Shape Standard
