  6. Swivel Plate Cstr, Cast Iron, 4 in, 1000 lb

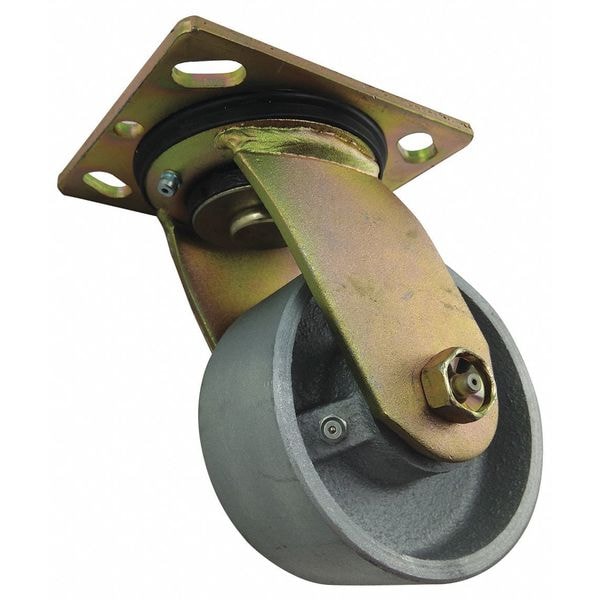

Zoro Select Swivel Plate Cstr, Cast Iron, 4 in, 1000 lb 33H771 - main

Swivel Plate Cstr, Cast Iron, 4 in, 1000 lb

  • Mfr # 33H771

  • Zoro # G4602254

product price:  $28.65
/ea

Key Features

Stem Dia.
No Stem
Frame Finish
Zinc Chromate
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. CA0420112G
Includes
Top Grease Seal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
33H771
Zoro #
G4602254
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
5-5/8in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Frame Finish
Zinc Chromate
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. CA0420112G
Includes
Top Grease Seal
Non-Marking
Yes
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Item
Plate Caster
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Thread Guards
No
Wheel Color
Gray
Load Rating
1000 lb
Core Color
Gray
Caster Brake Included
No
Number of Wheels
1
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
No Brake
Standards
ANSI ICWM
Wheel Core Material
Iron
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel/Tread Material
Iron
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Color
Gray
Compatible With
CA0420112G
Load Capacity - Maximum
1,000 lb
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
