Shop HAMILTON

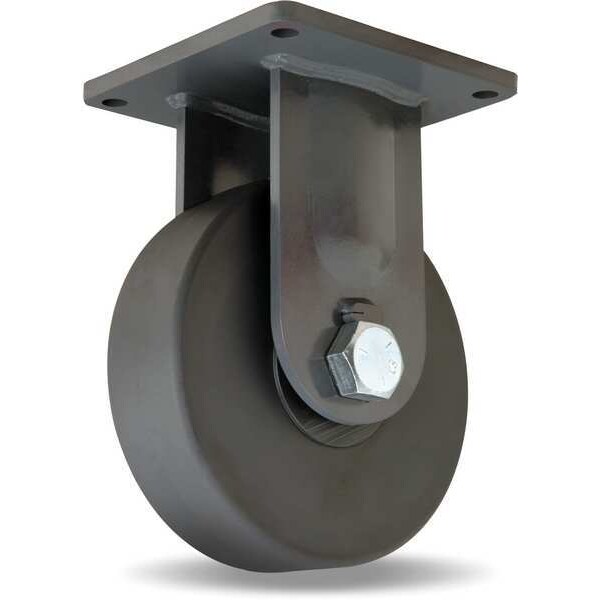

Plte Caster, Rgd, Nylon, 10 in., 8200 lb.

  • Mfr # R-MD-103NYB

  • Zoro # G6937393

product price:  $498.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
3 in
Wheel Dia.
10 in
Includes
Spanner Bushing
Extended Lead
No
Mounting Bolt Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-MD-103NYB
Zoro #
G6937393
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Wheel Dia.
10 in
Mounting Bolt Dia.
1/2 in
Overall Height
13"
Mounting Height
13 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Overall Wheel Width
3 in
Mounting Plate Length
8 1/2 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Thickness
1/2 in
Mounting Plate Width
8 1/2 in
Bolt Hole Spacing - Length
7 in

Details

Includes
Spanner Bushing
Extended Lead
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
7 in x 7 in
Standards
ANSI ICWM
Replacement Wheel
49H451
Caster Brake Included
No
Core Color
Black
Load Rating
8200 lb
Thread Guards
No
Caster Frame Material
Steel
Frame Finish
Enamel
Inside Bolt Hole Spacing
7 in x 7 in
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Item
Plate Caster
Number of Wheels
1
Wheel Color
Black
Caster Plate Hole Pattern
D
Caster Sub-Type
Rigid
Features
Floor Protective
Includes Thread Guards
No
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Load Rating Range
6000 lb and Greater
Number of Mounting Holes
4
Caster Brake Type
No Brake
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
8,200 lb
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Plate Shape
Square
Mounting Hole Type
Hole
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Rigid, Plate Caster, Load Rating 8200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
