  6. Plte Caster, Rgd, Phenolic, 8 in., 1400 lb.

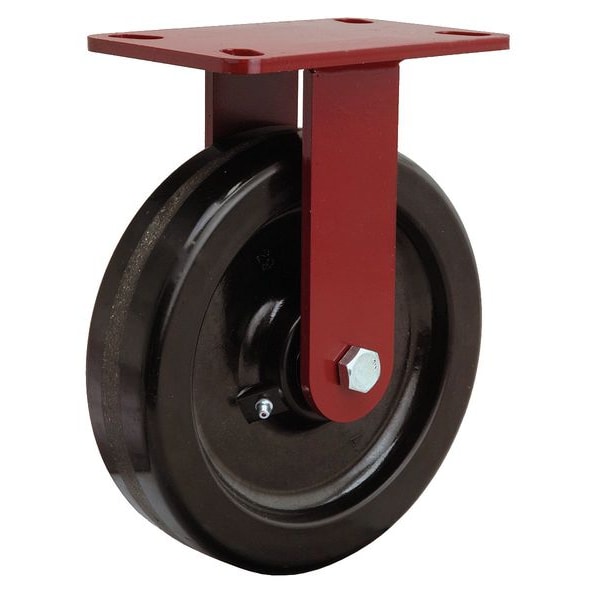

Hamilton Plte Caster, Rgd, Phenolic, 8 in., 1400 lb. R-HS-8P - main

Plte Caster, Rgd, Phenolic, 8 in., 1400 lb.

  • Mfr # R-HS-8P

  • Zoro # G7556053

product price:  $70.89
/ea

Key Features

Non-Marking
Yes
Caster Temp. Range Available
Yes
Extended Lead
No
Replacement Wheel
5VJ83
Caster Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-HS-8P
Zoro #
G7556053
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-3/4in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
9 1/2 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/2 in

Details

Non-Marking
Yes
Caster Temp. Range Available
Yes
Extended Lead
No
Replacement Wheel
5VJ83
Caster Frame Material
Steel
Wheel Color
Black
Standards
ANSI ICWM
Core Color
Black
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Item
Plate Caster
Caster Sub-Type
Rigid
Frame Finish
Enamel
Load Rating
1400 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Caster Plate Hole Pattern
A
Thread Guards
No
Caster Brake Included
No
Includes
Spanner Bushing
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Tread Shape
Standard
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
1,400 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature Range
-50 Degrees to 300 Degrees F

Description

Rigid, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
