Shop HAMILTON

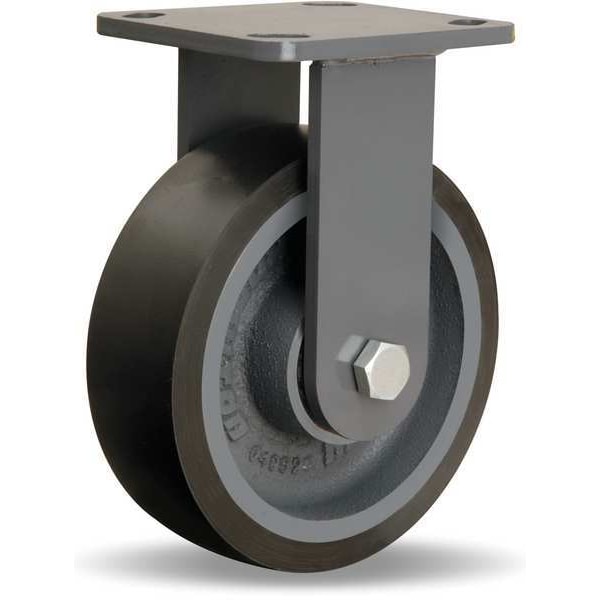

Plte Caster, Rgd, Poly, 6 in., 1560 lb., Blk

  • Mfr # R-WH-6DB70
  • Zoro # G6942101
product price:
$
121.99
/ea
Free Shipping & Returns

Key Features

Overall Height
7-1/2"
Wheel Width
2 in
Standards
ANSI ICWM
Outside Bolt Hole Spacing
3 in x 3 in
Features
Floor Protective
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-WH-6DB70
Zoro #
G6942101
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2"
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Fits Chest Size
Floor Protective

Details

Standards
ANSI ICWM
Outside Bolt Hole Spacing
3 in x 3 in
Features
Floor Protective
Caster Frame Material
Steel
Wheel Color
Black
Number of Wheels
1
Thread Guards
No
Core Color
Gray
Extended Lead
No
Caster Plate Hole Pattern
B
Non-Marking
Yes
Replacement Wheel
49H455
Caster Sub-Type
Rigid
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Included
No
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Spanner Bushing
Load Rating
1560 lb
Frame Finish
Enamel
Item
Plate Caster
Caster Temp. Range Available
Yes
Tread Shape
Standard
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
1,560 lb
Wheel Hardness Rating
70 Shore D
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1560 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
