  6. Plte Caster, Rgd, Poly, 6 in., 2400 lb.

This item is Discontinued.

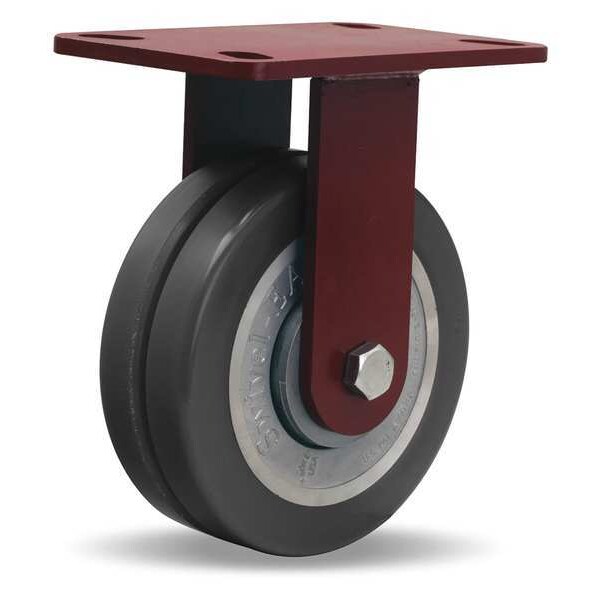

Hamilton Plte Caster, Rgd, Poly, 6 in., 2400 lb. R-HS-6SWC75D

Plte Caster, Rgd, Poly, 6 in., 2400 lb. (Discontinued)

  • Mfr # R-HS-6SWC75D
  • Zoro # G0489356
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-HS-6SWC75D
Zoro #
G0489356
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-3/4"
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Bolt Dia.
1/2 in
Caster Plate Size
4-1/2" x 6-1/2"
Caster Plate Thickness
1/4"
Plate Thickness
1/4"
Plate Size
4-1/2" x 6-1/2"

Details

Caster Brake Included
No
Item
Standard Plate Caster
Caster Load Rating Range
Medium-Duty
Caster Sub-Type
Rigid
Caster Product Group
Rigid Caster
Load Rating
2400 lb
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Polyurethane
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Precision Ball
Mounting Plate Bolt Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Number of Mounting Holes
4
Caster Brake Type
No Brake Included
Swivel Lock Type
No Lock Included
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Enamel
Caster Frame Material
Steel
Wheel Core Material
Polyurethane
Core Color
Silver
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Ergonomic Applications, Material Carts, Premium Forged Steel Casters
Features
Floor Protective
Standards
ICWM
Replacement Wheel
Mfr. No. W-620-SWC75D-1/2
Caster Temp. Range Available
Yes
Caster Min. Temp.
-40 Degrees F
Caster Wheel Bearings
Ball
Thread Guards
No
Plate Caster Bolt Hole Pattern
A
Caster Core Material
Polyurethane
Caster Plate Hole Pattern
A
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Wheel Color
Black
Caster Max. Temp.
200 Degrees F
Frame Material
Steel
Caster Temp. Range
-40 Degrees to 200 Degrees F
Durometer
75 Shore D
Tread Shape
Standard
Wheel/Tread Hardness
75 Shore D
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Wheel/Tread Color
Black

Description

Rigid, Standard Plate Caster, Load Rating 2400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake Included, Tread Shape Standard
