  6. Plte Caster, Rgd, Poly, 6 in., 2450 lb.

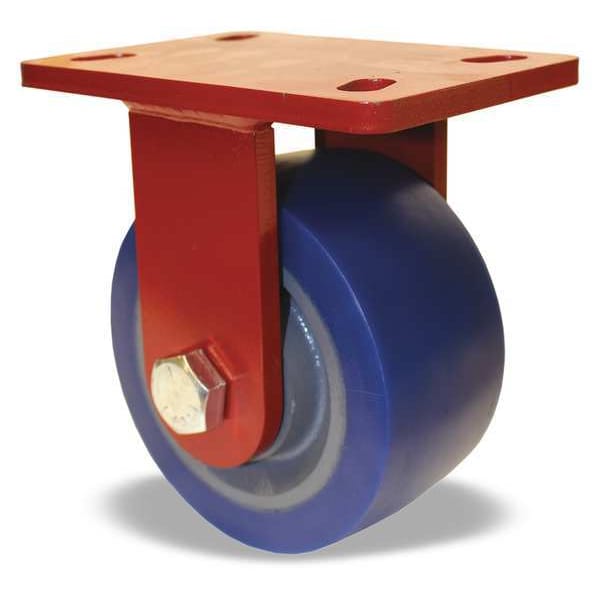

Hamilton Plte Caster, Rgd, Poly, 6 in., 2450 lb. R-FM-63EGB - main

Plte Caster, Rgd, Poly, 6 in., 2450 lb.

  • Mfr # R-FM-63EGB

  • Zoro # G0383260

product price:  $222.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Wheel Width
3 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-FM-63EGB
Zoro #
G0383260
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Overall Height
7-1/2in
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
5 in x 7 in
Mounting Height
7 1/4 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
6 1/2 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in

Details

Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Enamel
Number of Wheels
1
Load Rating
2450 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Core Color
Gray
Replacement Wheel
Mfr. No. W-630-EGB-3/4
Item
Plate Caster
Wheel Color
Blue
Extended Lead
No
Thread Guards
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Caster Frame Material
Steel
Caster Sub-Type
Rigid
Caster Brake Included
No
Includes
Spanner Bushing
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel Core Material
Polyurethane
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
2,450 lb
Compatible With
W-630-EGB-3/4
Wheel Hardness Rating
82 Shore A
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 2450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
