  6. Plte Caster, Rgd, Poly, 6 in., 3200 lb.

This item is Discontinued.

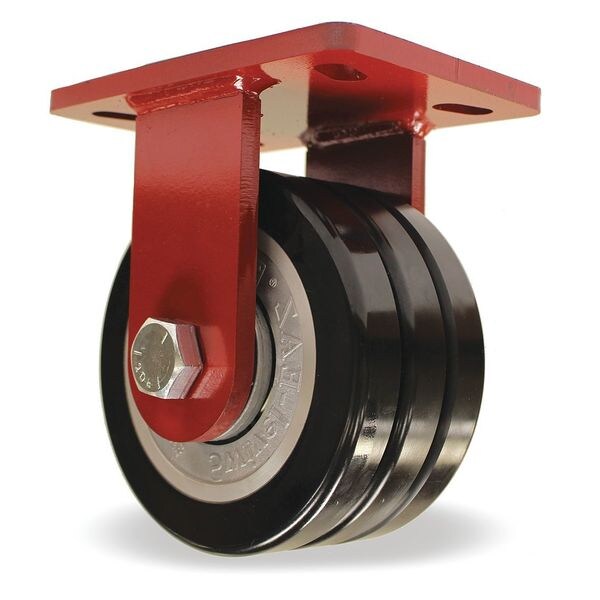

Hamilton Plte Caster, Rgd, Poly, 6 in., 3200 lb. R-FM-63SWC

Plte Caster, Rgd, Poly, 6 in., 3200 lb. (Discontinued)

  • Mfr # R-FM-63SWC
  • Zoro # G0383236
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-FM-63SWC
Zoro #
G0383236
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
7-1/2"
Wheel Dia.
6 in
Wheel Width
3 in
Plate Size
4-1/2" x 6-1/2"
Mounting Bolt Dia.
1/2 in
Caster Plate Thickness
1/4"
Plate Thickness
1/4"
Caster Plate Size
4-1/2" x 6-1/2"
Mounting Plate Size
5 in x 7 in
Mounting Height
7 1/4 in

Details

Caster Brake Included
No
Caster Load Rating Range
Heavy-Duty
Caster Sub-Type
Rigid
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Polyurethane
Load Rating
3200 lb
Number of Wheels
3
Item
Standard Plate Caster
Caster Temp. Range
-40 Degrees to 200 Degrees F
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Non-Marking
Yes
Replacement Wheel
Mfr. No. W-630-SWC-3/4
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Ergonomic Applications, Material Carts, Premium Forged Steel Casters
Extended Lead
No
Caster Product Group
Rigid Caster
Features
Floor Protective
Core Color
Silver
Caster Plate Hole Pattern
A
Caster Min. Temp.
-40 Degrees F
Durometer
75 Shore D
Caster Max. Temp.
200 Degrees F
Caster Wheel Bearings
Ball
Caster Frame Material
Steel
Plate Caster Bolt Hole Pattern
A
Standards
ANSI ICWM
Frame Finish
Enamel
Wheel Color
Black
Caster Swivel Lock Type
No Lock Included
Frame Material
Steel
Thread Guards
No
Caster Temp. Range Available
Yes
Caster Core Material
Polyurethane
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Bearing Type
Precision Ball
Tread Shape
Standard
Swivel Construction
Kingpinless
Load Rating Range
3000 to 5999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness
75 Shore D
Includes Thread Guards
No
Wheel Core Material
Polyurethane
Mounting Plate Bolt Hole Pattern
A
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore D
Compatible With
W-630-SWC-3/4
Load Capacity - Maximum
3,200 lb

Description

Rigid, Standard Plate Caster, Load Rating 3200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 3, Caster Brake Type No Brake Included, Tread Shape Standard
