Shop HAMILTON

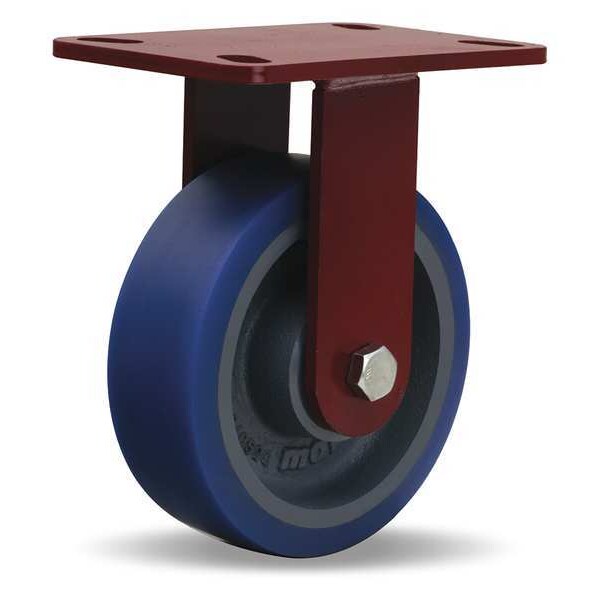

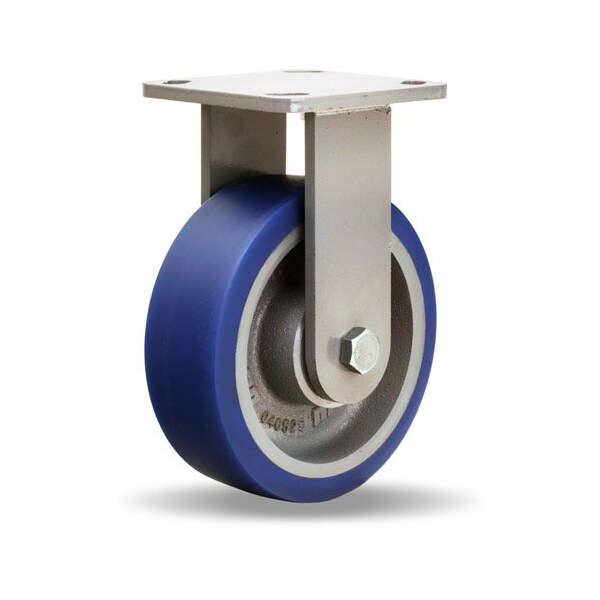

Plte Caster, Rgd, Poly, 6 in., 960 lb., Blue

  • Mfr # R-ZFWH-6SPB

  • Zoro # G0383647

product price:
$
115.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
6 in
Features
Maintenance Free
Load Rating
960 lb
Caster Brake Included
No
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-ZFWH-6SPB
Zoro #
G0383647
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Overall Height
7-1/2"
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4 in

Details

Features
Maintenance Free
Load Rating
960 lb
Caster Brake Included
No
Core Color
Gray
Frame Finish
Enamel
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Replacement Wheel
4DB70
Item
Plate Caster
Wheel Color
Blue
Non-Marking
Yes
Includes
Spanner Bushing
Thread Guards
No
Caster Sub-Type
Rigid
Extended Lead
No
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Caster Brake Type
No Brake
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Wheel Core Material
Polyurethane
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Load Capacity - Maximum
960 lb
Wheel Hardness Rating
82 Shore A
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature Range
-50 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 960 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
