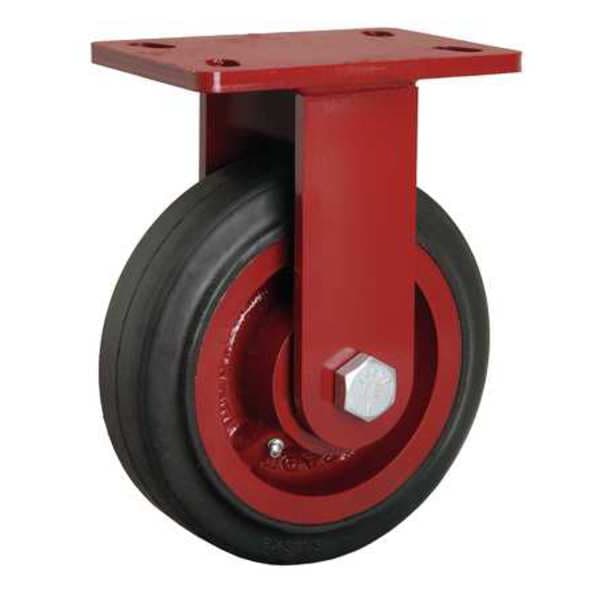

Hamilton Plte Caster, Rgd, Rubber, 8 in., 670 lb. R-FM-8RB - main

Plte Caster, Rgd, Rubber, 8 in., 670 lb.

  • Mfr # R-FM-8RB

  • Zoro # G1806314

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Includes
Spanner Bushing
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Width
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-FM-8RB
Zoro #
G1806314
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 1/2 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/4in
Wheel Dia.
8 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
10 1/4 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
3/8 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Overall Wheel Width
2 1/2 in
Inside Slot Spacing - Width
2.438 in

Details

Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Includes
Spanner Bushing
Item
Plate Caster
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Enamel
Core Color
Red
Load Rating
670 lb
Number of Wheels
1
Caster Frame Material
Steel
Standards
ANSI ICWM
Features
Floor Protective
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
No
Wheel Color
Black
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. W-825-RB-3/4
Caster Plate Hole Pattern
A
Caster Brake Included
No
Thread Guards
No
Tread Shape
Standard
Wheel Core Material
Iron
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Compatible With
W-825-RB-3/4
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
670 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature - Minimum
-70 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-70 Degrees to 160 Degrees F

Description

Rigid, Plate Caster, Load Rating 670 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
