Shop HAMILTON

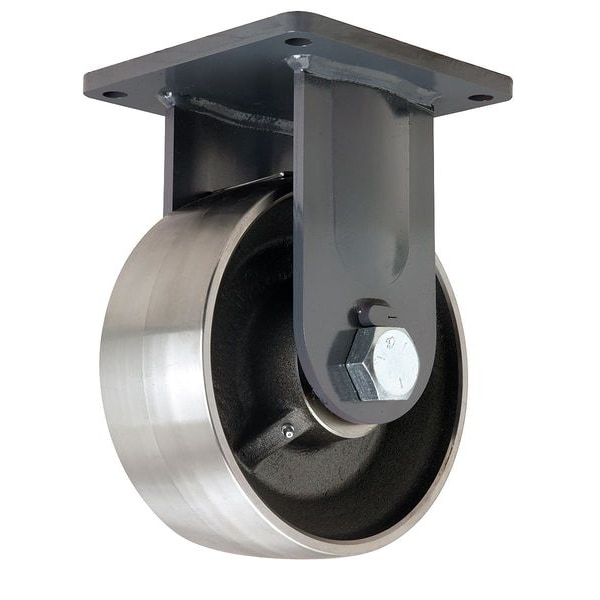

Plte Cstr, Rgd, Frgd Steel, 10 in, 18,000 lb

  • Mfr # R-MD-104FST

  • Zoro # G7024893

product price:  $519.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Caster Brake Included
No
Standards
ANSI ICWM
Inside Bolt Hole Spacing
7 in x 7 in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-MD-104FST
Zoro #
G7024893
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Dia.
10 in
Overall Height
13"
Wheel Width
4 in
Mounting Height
13 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in
Bolt Hole Spacing - Length
7 in
Overall Wheel Width
3 in
Mounting Plate Length
8 1/2 in
Mounting Plate Thickness
1/2 in

Details

Non-Marking
Yes
Caster Brake Included
No
Standards
ANSI ICWM
Inside Bolt Hole Spacing
7 in x 7 in
Number of Wheels
1
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Color
Silver
Includes
Spanner Bushing
Core Color
Silver
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
7 in x 7 in
Caster Frame Material
Steel
Caster Sub-Type
Rigid
Thread Guards
No
Load Rating
18,000 lb
Item
Plate Caster
Caster Plate Hole Pattern
D
Replacement Wheel
23EE28
Frame Finish
Enamel
Extended Lead
No
Caster Brake Type
No Brake
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel Core Material
Steel
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
6000 lb and Greater
Wheel Bearing Type
Roller
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
18,000 lb
Wheel Hardness Rating
170 BHN
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Square
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 18,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
