  11. Single-Flanged Castr, Cst Irn, 4-15/16 in.

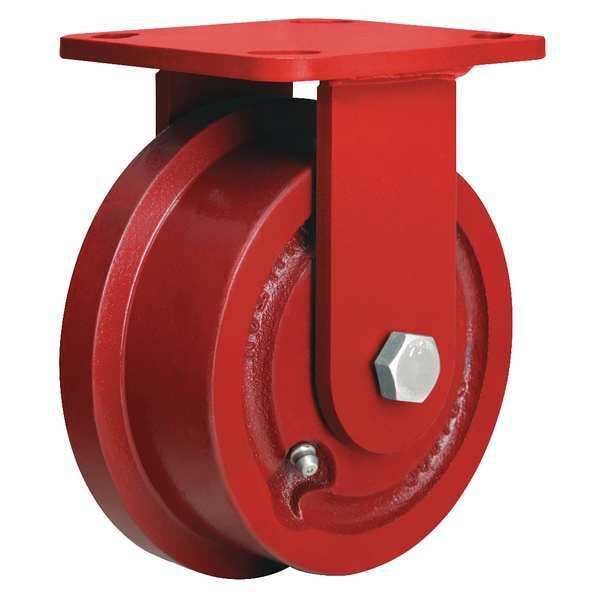

Hamilton Single-Flanged Castr, Cst Irn, 4-15/16 in. R-HS-FT51H - main

Single-Flanged Castr, Cst Irn, 4-15/16 in.

  • Mfr # R-HS-FT51H

  • Zoro # G7595147

product price: $135.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Dia.
4 15/16 in
Wheel Width
2 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-HS-FT51H
Zoro #
G7595147
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 15/16 in
Wheel Width
2 1/8 in
Mounting Height
6 1/8 in
Mounting Plate Size
4-1/2 in x 6-1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Overall Height
6-1/8in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
For Axle Dia.
1/2 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 1/8 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Load Rating
1500 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Single Flange
Caster Frame Material
Steel
Core Color
Red
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Wheel Color
Red
Caster Temp. Range Available
Yes
Caster Brake Included
No
Frame Finish
Enamel
Replacement Wheel
Mfr. No. WFT-51H-3/4
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Wheel Type
Flat-Free
Compatible With
WFT-51H-3/4
Load Capacity - Maximum
1,500 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
450 Degrees F
Operating Temperature Range
-40 Degrees to 450 Degrees F

Description

Rigid, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 15/16 in, Wheel Width 2 1/8 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Single Flange
