  11. Swivel Caster, Fm 6X3 Duralast

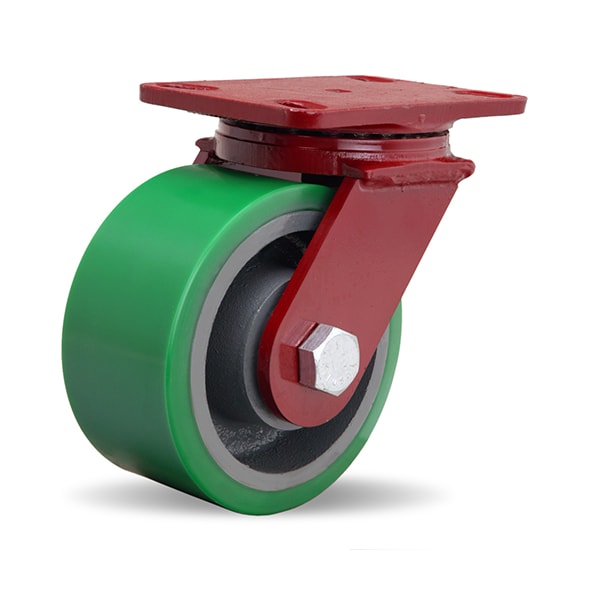

Hamilton Swivel Caster, Fm 6X3 Duralast S-FM-63DB - main

Swivel Caster, Fm 6X3 Duralast

  • Mfr # S-FM-63DB

  • Zoro # G3698239

product price: $269.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-FM-63DB
Zoro #
G3698239
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5 1/4 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Tread
Flat
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Type
Flat-Free
Thread Guards
No
Frame Finish
Powder Coated
Operating Temperature Range
-50 Degrees to 200 Degrees F
NSF Listed
No
Wheel Core Material
Iron
Includes Mounting Fasteners
No
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel Bearing Material
Steel
ESD Conductive
Yes
Frame Construction
Forged
Series
Heavy Service
Includes Spanner Bushing
Yes
With Toe Plate
No
Includes Thread Guards
No
For Surface Type
Concrete
Swivel Bearing Seal Type
Open
Frame Color
Red
Leveling Caster
No
Wheel Core Type
Solid
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Swivel Lead
2 1/4 in
Tire Style
Tubeless
Wheel/Tread Hardness Rating
Firm
Load Capacity - Maximum
2,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
