  6. Swivel Caster, Hs 4X2 Mort

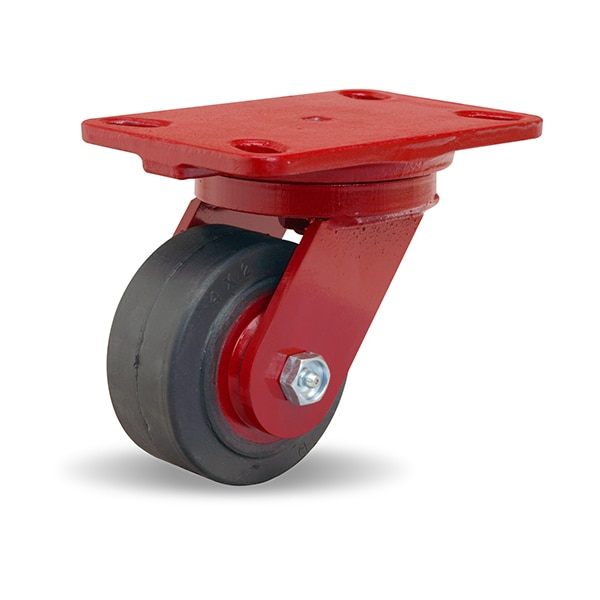

Hamilton Swivel Caster, Hs 4X2 Mort S-HS-4R - main

Swivel Caster, Hs 4X2 Mort

  • Mfr # S-HS-4R

  • Zoro # G3735040

product price:  $135.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Core Color
Red
Wheel Width
2 in
System of Measurement
Inch
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S-HS-4R
Zoro #
G3735040
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Swivel Radius
3 5/8 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
4 in
Overall Wheel Width
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
For Axle Dia.
1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/2 in

Details

Number of Wheels
1
Core Color
Red
System of Measurement
Inch
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Powder Coated
Caster Brake Type
No Brake
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Item
Plate Caster
Non-Marking
No
Caster Mounting Type
Plate
Thread Guards
No
Tread
Flat
Wheel Type
Flat-Free
Caster Sub-Type
Swivel
Load Rating
300 lb
Caster Frame Material
Steel
Wheel/Tread Color
Black
Swivel Construction
Kingpin
NSF Listed
No
Series
Heavy Service
Includes Mounting Fasteners
No
Wheel Bearing Type
Plain
Wheel/Tread Material
Rubber
Frame Construction
Forged
Load Rating Range
300 to 999 lb
Leveling Caster
No
Wheel Bearing Material
Steel
Tire Style
Tubeless
Wheel Core Material
Iron
Swivel Bearing Seal Type
Open
Wheel Core Type
Solid
With Toe Plate
No
Number of Mounting Holes
4
Operating Temperature Range
-30 Degrees to 250 Degrees F
For Surface Type
Concrete
ESD Conductive
Yes
Includes Spanner Bushing
Yes
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Frame Color
Red
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Swivel Lead
1 3/4 in
Includes Thread Guards
No
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
300 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
