  11. Swivel Stem Caster w/Totl Lk, 5 in, 300 lb
Shop All Stem Casters
Zoro Select

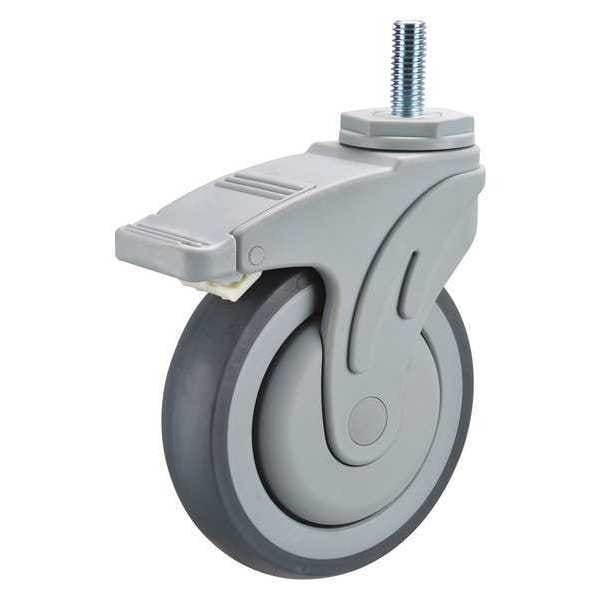

Swivel Stem Caster w/Totl Lk, 5 in, 300 lb

product price: $33.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Stem Type Threaded Stem
  • Tread Shape Standard
  • Wheel Width 1-1/4 in
  • Mounting Height 6 7/8 in
  • Load Rating 220 lb
See all product information

Product Information

Dimensions

Wheel Width 1-1/4 in
Mounting Height 6 7/8 in
Stem Length 1-1/2 in
Thread Size 1/2"-13
Overall Height 6-7/8 in
Caster Thread Size 1/2"-13
Wheel Dia. 5 in
Stem Dia. 1/2 in
Caster Stem Size 1/2"-13 x 1-1/2 in
Swivel Radius 3-13/16 in

Details

Item Swivel Stem Caster With Total-Lock
Caster Stem Type Threaded Stem
Tread Shape Standard
Load Rating 220 lb
Wheel/Tread Material Polyolefin
Application Retail, Industrial, Commercial
Non-Marking Yes
Caster Brake Type Total Lock Brake
Caster Frame Material Nylon
Wheel Bearing Type Precision Ball
Number of Wheels 1
Includes Total-Lock, Thread Guards
Frame Finish Natural Light Gray
Caster Temp. Range Available Yes
Caster Wheel Bearings Precision Ball
Caster Core Material Polypropylene
Features Glass Filled Nylon Body
Standards RoHS, ICWM
Caster Brake Included Yes
Wheel Color Gray
Caster Wheel Shape Standard
Caster Product Group Swivel Caster With Total-Lock
Replacement Wheel Mfr. No. NG-05QDP-125-05
Caster Temp. Range -4 Degrees To 140 Degrees F
Core Color Gray
Caster Sub-Type Swivel
Caster Raceway Precision Ball
Caster Swivel Lock Type Total-Lock
Caster Wheel/Tread Material Thermoplastic Rubber
Caster Load Rating Range Light Duty
Wheel Core Material Polypropylene
Swivel Lock Type Total Lock
Swivel Raceway Type Sealed Single Ball Bearing
Operating Temperature Range -45 Degrees to 180 Degrees F
Wheel/Tread Color Gray
Series P17 Series
Tread Color Gray
Tread Standard
Resistant To High Chemical Resistance To Many Aggressive Substances
Extended Lead No
Caster Break Type Total Lock
Caster Mounting Type Threaded Stem
Load Capacity 220 lb
Wheel/Tread Hardness 85-95 Shore A
System of Measurement Inch
Includes Thread Guards Yes
ESD Conductive No

Description

Single-Wheel Threaded Stem Caster, Swivel Caster with Total Lock, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 6 7/8 in Mounting Height, Precision Ball, 1/2 In.-13 x 1-1/2 in Caster Stem Size, Threaded, Nylon Caster Frame Material, No Finish Frame Finish, Yes Non-Marking, 1 Number of Wheels
