  11. Swivel Pnumatic Caster w/ Brake Lock, 8''
Hamilton Swivel Pnumatic Caster w/ Brake Lock, 8'' S-7008-PRB-4SL-FB - main

Swivel Pnumatic Caster w/ Brake Lock, 8''

  • Mfr # S-7008-PRB-4SL-FB

  • Zoro # G6183143

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Wheel Dia.
8 in
Wheel Width
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-7008-PRB-4SL-FB
Zoro #
G6183143
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia.
8 in
Wheel Width
2 1/2 in
Mounting Height
10 5/8 in

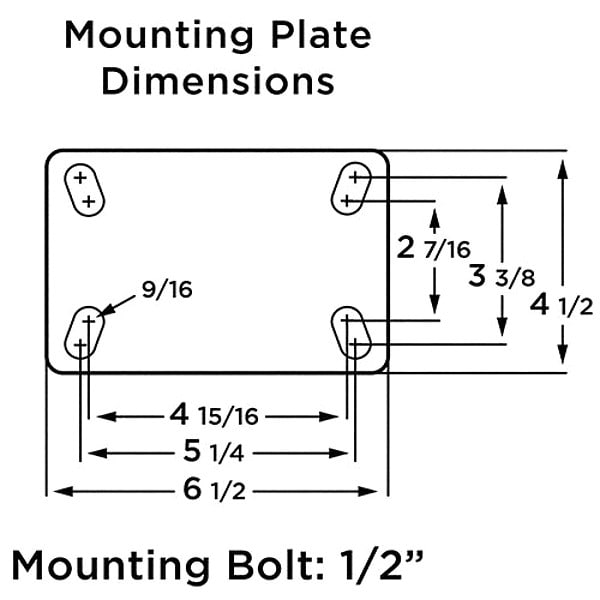

Mounting Plate Size
4-1/2 in x 6-1/2 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
10 5/8in
Hub Width
3"
Tire Rim Dia.
4 in
Outside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 13/16 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Length
4.938 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Load Rating
330 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
60 Shore A
Number of Mounting Holes
4
Tread Shape
Sawtooth
Caster Frame Material
Steel
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Tread Color
Black
Hub Color
Black
Hub Type
Symmetrical
Hub Material
Steel
Ply
4
Caster Temp. Range Available
Yes
Tread
Sawtooth
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Operating Temperature Range
-30 Degrees to 120 Degrees F
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Soft
Wheel Type
Pneumatic
Load Capacity - Maximum
330 lb
Mounting Hole Type
Slot
Brake Location
Right Side
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 330 lb, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Sawtooth
