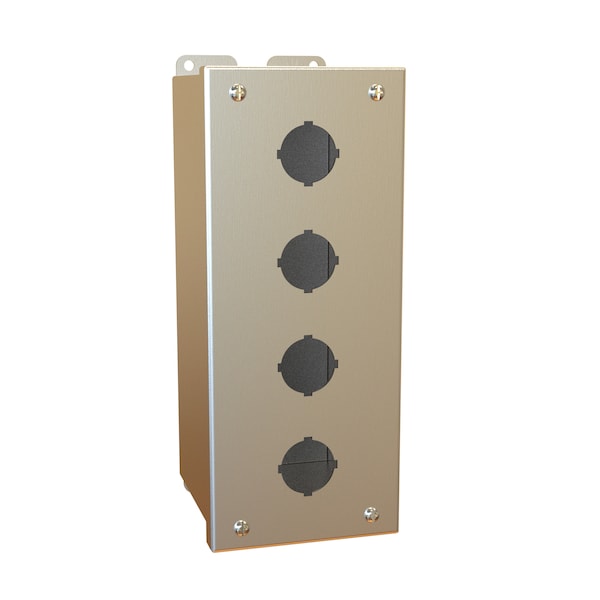

Pushbutton Enclosure, Extra Deep, 4 PB x 22.5mm, 316SS

  • Mfr # 1437MS16D

  • Zoro # G910888665

product price:
$
512.99
/ea
Free Shipping & Returns

Key Features

Material
Stainless Steel
Height
10
Width
4
Depth
4.75
Standards
UL 508A Type 4 and 4X; CSA Enclosure 4 and 4X; Complies with NEMA Type 4 and 4X IEC 60529, IP66; NEMA Type 4 and 4X; IEC 60529, IP66; Appropriate components are required to maintain these standards.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1437MS16D
Zoro #
G910888665
UPC #
62398043389
Country of Origin
Canada

Dimensions

Height
10
Width
4
Depth
4.75
Size
10 in x 4 in x 4.75 in (H x W x D)

Details

Item
Enclosure
Material
Stainless Steel
Standards
UL 508A Type 4 and 4X; CSA Enclosure 4 and 4X; Complies with NEMA Type 4 and 4X IEC 60529, IP66; NEMA Type 4 and 4X; IEC 60529, IP66; Appropriate components are required to maintain these standards.
Application
Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights; Provides protection from dirt, dust, oil and water.
Finish
Natural stainless steel with a smooth brushed finish.
Additional Description
Pushbutton Encl - Extra Deep - 4 PB x 22.5mm - 316SS
Construction
Formed from 14 gauge steel except A which is 16 gauge; Smooth continuously welded seams; Welded brackets provide for enclosure mounting; Captive cover screws fasten into threaded, sealed wells; Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see drawings); Oil resistant gasket and adhesive; A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
