Shop TELEMECANIQUE SENSORS

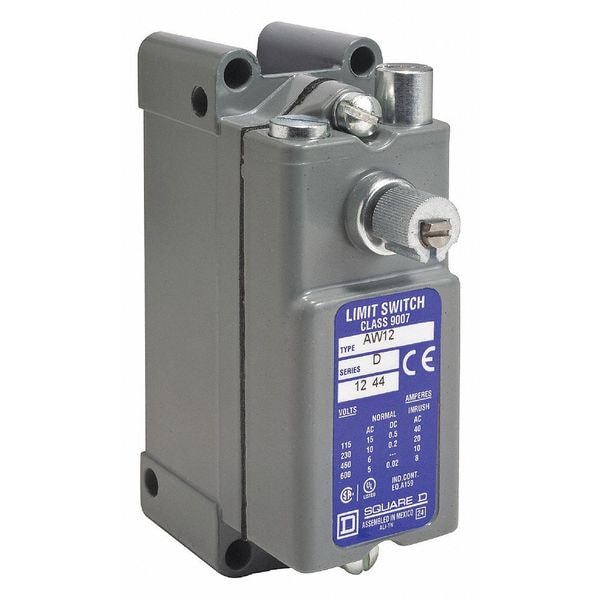

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC, Actuator Location: Side

  • Mfr # 9007AW12

  • Zoro # G1902792

product price:  $262.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9007AW12
Zoro #
G1902792
UPC #
785901807629
Country of Origin
Mexico

Dimensions

Depth
1.40"
Body Height - Limit Switch
3.68 in
Body Depth - Limit Switch
1.44 in
Width
3.00"
Height
3.91"
Body Width - Limit Switch
2.39 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.44 in
Body Depth
1.44 in
Overall Width
2.69 in
Body Width
2.39 in
Arm Length - Maximum
1.38 in
Overall Height
3.68 in
Body Height
3.68 in
Mounting Hole Diameter
0.2 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
15A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Movement
CCW, CW
Electrical Connection
Screw Terminal
NEMA Rating
1, 12, 13, 2, 4
Actuator Style
Rotary Lever
Contact Form
SPDT-DB-1NO/1NC
Boot Sealed Actuator - Limit Switch
No
Stem Thread - Limit Switch
No Stem
Travel
Total Travel 300 Degrees
Body Material
Zinc
Standards
C22.2-14, CSA, NEMA 250, UL Listed, UL 508
Actuator Style (Limit Switch)
Rotary, No Lever
Wiring Entry
1/2 in NPT
Amps
15
Series
9007AW
AC Contact Rating
15 A @ 600 V
DC Contact Rating
15 A @ 600 V
Limit Switch Style
Heavy Duty Limit Switch
IP Rating
IP65
Boot Sealed Actuator (Limit Switch)
No
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location (Limit Switch)
Side
Contact Form - Limit Switch
1NC/1NO
Operating Temp. Range
-65 Degrees to 185 Degrees F
Voltage Rating
600VAC/DC
Operating Force
2.75 in-lb
Body Style (Limit Switch)
Standard
Actuator Location
Side
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Special Features
lateral approach, 1 direction programmable
Differential Travel
2.5 Degrees
Contact Material
silver contacts
Min. Actuation Velocity Horizontal
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Weight
1.25 lb(US)
Head Type
rotary head
Actuation Type
from left convertible to right || CCW convertible to CW
Contact Action
snap action
NEMA Enclosure Rating
1, 12, 13, 2, 4
Operating Torque - Maximum
2.75 in-lb
Number of Mounting Holes
6
Mounting Style
Surface
Operating Temperature - Maximum
185 Degrees F
Directional Movement
CCW/CW
Mounting Hole Vertical Center to Center Distance
89 mm
Overtravel
25 Degrees
Operating Temperature - Minimum
-65 Degrees F
Pretravel
5 Degrees
Boot Sealed Actuator
No Boot Included
Mounting Hole Horizontal Center to Center Distance
27 mm
Includes Actuator
No Actuator Included
Total Travel
30 Degrees
Number Of Poles
1
Type Of Operator
spring return without operating lever cast zinc

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 3.68 in, Body Width - Limit Switch 2.39 in, Body Depth - Limit Switch 1.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
