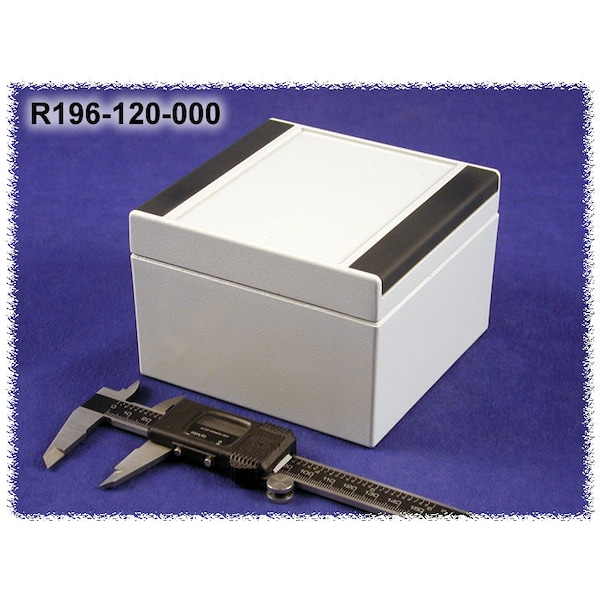

Hammond Screws Electrical Enclosures, 4.8 in H, 3.23 in D, 4.72 in W, 1, 4, 4X, 12 & 13 R196-120-000 - main

Screws Electrical Enclosures, 4.8 in H, 3.23 in D, 4.72 in W, 1, 4, 4X, 12 & 13

  • Mfr # R196-120-000

  • Zoro # G910889969

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
4.72 in
Nominal Height
4.8 in
Nominal Depth
3.23 in
NEMA Enclosure Rating
1, 4, 4X, 12 & 13
Enclosure Material
Aluminum (Die-Cast Alloy)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R196-120-000
Zoro #
G910889969
UPC #
62398002322
Country of Origin
Germany

Dimensions

Nominal Width
4.72 in
Nominal Height
4.8 in
Nominal Depth
3.23 in

Details

Item
Electrical Enclosures
NEMA Enclosure Rating
1, 4, 4X, 12 & 13
Enclosure Material
Aluminum (Die-Cast Alloy)
Closure Method
Screws
Cover Closure Type
Clip On
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Textured Polyester Powder
Mounting
Wall
Cover Style
Solid
IP Rating
IP66
Key Features
Modern, high quality instrument enclosure; Material - Aluminum die-cast: GD SI 12 / DIN 1725; Shallow lid, deep body; Captive stainless steel lid screws; Enclosure can be mounted to wall or shelf after closing the lid; Integrated 1.7 mm recess in lid for membrane keypads and front panels; Silicone gasket standard. (-50ºC up to +140ºC); Dark grey plastic clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - RAL 7016; Complete with lid captivation devices; Degree of protection: NEMA 4X, IP66; UL Listed; Textured polyester powder coat, light grey RAL 7035. (can be supplied unpainted on special order)

Description

enclosure - diecast aluminum
