Hankison

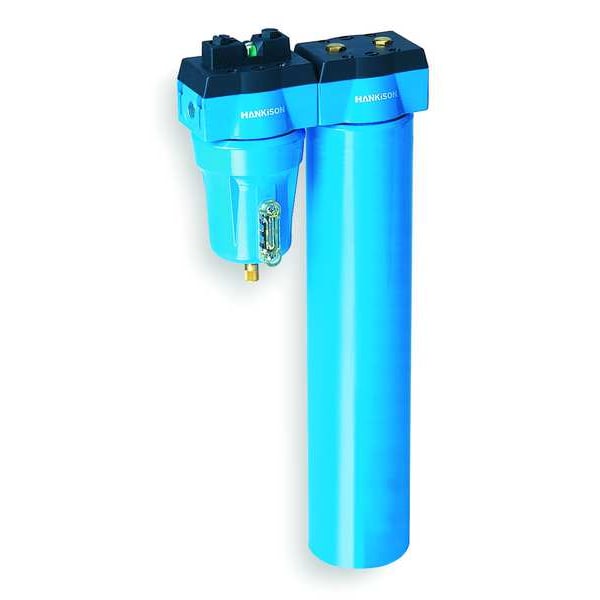

Air Dryer, Membrane, 2.18 to 9.55 CFM

product price: $1,405.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 2, 3, 4, 5, 6
  • CFM 2.18 to 9.55
  • Dew Point (Deg. F) -40 to 50
  • Series HMM
  • Height (In.) 19 in
See all product information

Product Information

Dimensions

Height (In.) 19 in
Width (In.) 8 in
Overall Width 105 mm
Overall Height 19 3/4 in
Overall Depth 4 1/8 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

ISO Class 2, 3, 4, 5, 6
CFM 2.18 to 9.55
Dew Point (Deg. F) -40 to 50
Series HMM
Includes Auto Drain, Oil Removal Prefilter
Max. Inlet Temp. (Deg. F) 150 Degrees F
Inlet/Outlet (In.) 1/2 in
Max. Ambient Temp. (F) 150 Degrees F
Type Membrane
Max. Pressure (PSI) 200 psi
Filter Grade 5 Coalescing
Item Membrane Air Dryer
Weight 3 kg
Standards ISO 7183
Finish Powder Coated
Filter Element Compatibility F02-B-PF/HF
Filter Type Coalescing
Housing Material Aluminum
Number of Air Inlets 1
Body Material Aluminum
Maximum Ambient Temperature 150 Degrees F
Dew Point 40 Degrees F
Filter Element Life 6 mo
Maximum Operating Pressure 200 psi
Drain Type Automatic
Number of Air Outlets 1
Minimum Flow Rate 2.18 cfm
Maximum Flow Rate 9.7 cfm
Filter Included Grade 5 Coalescing
Maximum Operating Temperature 150 Degrees F
Filtered Substance Oil, Water
Air Inlet Type NPT

Description

Membrane Air Dryer, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 9.7 cfm, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 150 Degrees F, Maximum Ambient Temperature 150 Degrees F, Drain Type Automatic, ISO Class 2, 3, 4, 5, 6, Dew Point 40 Degrees F, Overall Width 105 mm, Overall Height 19 3/4 in, Series HMM, Air Outlet Size 1/2 in, Body Material Aluminum, Features -, Filter Element Compatibility F02-B-PF/HF
