Parker

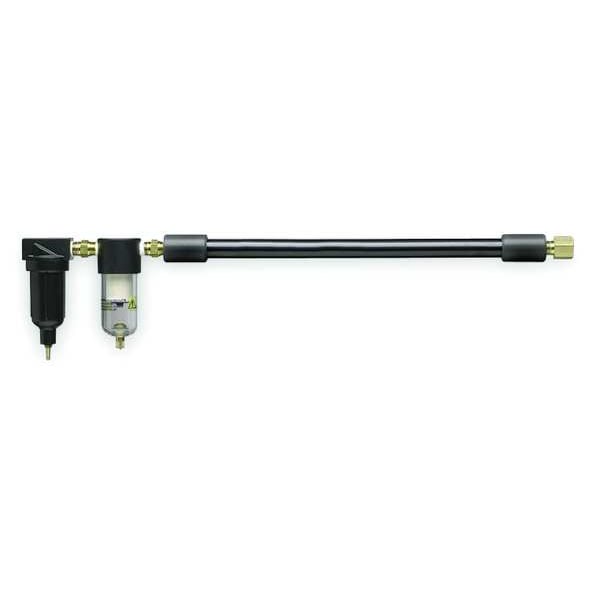

Air Dryer, Membrane, 1 CFM, 1/4 In

original price: $1,079.00
5% off
new price: $1,024.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 4, 5, 6
  • CFM 1
  • Dew Point (Deg. F) 35
  • Max. Pressure (PSI) 150 psi
  • Includes Auto Drain
See all product information

Product Information

Dimensions

Height (In.) 5.4 in
Width (In.) 18.8 in
Overall Height 5 13/32 in
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in
Overall Depth 18 13/16 in
Overall Width 2 5/16 in

Details

ISO Class 4, 5, 6
CFM 1
Dew Point (Deg. F) 35
Max. Pressure (PSI) 150 psi
Includes Auto Drain
Filter Grade BX Coalescing
Features Quiet Operation
Max. Ambient Temp. (F) 120 Degrees F
Inlet/Outlet (In.) 1/4 in
Max. Inlet Temp. (Deg. F) 120 Degrees F
Type Membrane
Item Membrane Air Dryer
Bracket Kit Included
Series AD
Number of Stages 3
Minimum Flow Rate 1 cfm
Number of Air Inlets 1
Filter Element Compatibility 8A02N-OBD-BX
Drain Included Yes
Air Outlet Type NPT
Filter Element Life 1 yr
Air Inlet Gender Female
Number of Air Outlets 1
Maximum Operating Temperature 120 Degrees F
Filtered Substance Oil, Water
Maximum Flow Rate 1 cfm
Filter Type Coalescing
Air Inlet Type NPT
Dew Point 35 Degrees F
Maximum Operating Pressure 150 psi
Air Outlet Gender Female
Bracket Kit Included Yes
Maximum Flow @ 100 psi 0.8 scfm
Drain Type Automatic
Maximum Ambient Temperature 120 Degrees F
Pressure Drop 3 psid
Filter Rating 0.01 micron

Description

Membrane Air Dryer, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 1 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 120 Degrees F, Maximum Ambient Temperature 120 Degrees F, Drain Type Automatic, ISO Class 4, 5, 6, Dew Point 35 Degrees F, Overall Width 2 5/16 in, Overall Height 5 13/32 in, Series AD, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Bracket Kit Included Yes, Drain Included Yes
