  6. Compressed Air Dryer, 100 CFM, 25 HP, 115V

This item is Discontinued.

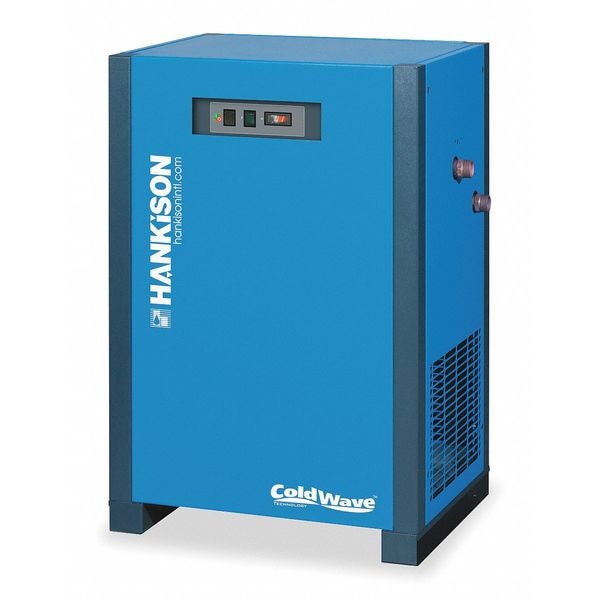

Hankison Compressed Air Dryer, 100 CFM, 25 HP, 115V HPRP100

Compressed Air Dryer, 100 CFM, 25 HP, 115V (Discontinued)

  • Mfr # HPRP100
  • Zoro # G0718575
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HPRP100
Zoro #
G0718575
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1" NPT
Overall Height
38 in
Overall Width
29 in
Overall Depth
20 in
Connection Size - Air Treatment
1 in NPT

Details

Item
Compressed Air Dryer
Includes
6 ft Power Cord
CFM
100
Phase
1
Voltage
115VAC
Max. Pressure
250 psi
ISO Class
5
Refrigerant
R-134A
Dew Point
41 Degrees F
Filter
Integral 3 Micron
Phase - Air Treatment
Single
Full Load Amps
10.2
Max. Inlet Temp. - Air Treatment
120 Degrees F
Power
5.83kW
Max. Air Compressor HP
25
ISO Class - Air Treatment
5
Finish
Epoxy Powder Coated
Heat Exchanger Material
316 Stainless Steel
Max. Ambient Temp.
110 Degrees F
Input Voltage - Air Treatment
115 V AC
Item - Refrigerated Air Dryers
Refrigerated Compressed Air Dryer
Features
High Efficiency Separator, Power On Light and Automatic Condensate Drain
Max. Incoming Pressure - Air Treatment
250 psi
Max. Flow - Air Treatment
100 cfm
Max. Inlet Temp.
120 Degrees F

Description

Compressed Air Dryer, ISO Class 5, Voltage 115VAC, Phase 1, Power 5.83kW, Dew Point 41 Degrees F, Features High Efficiency Separator, Power On Light and Automatic Condensate Drain
